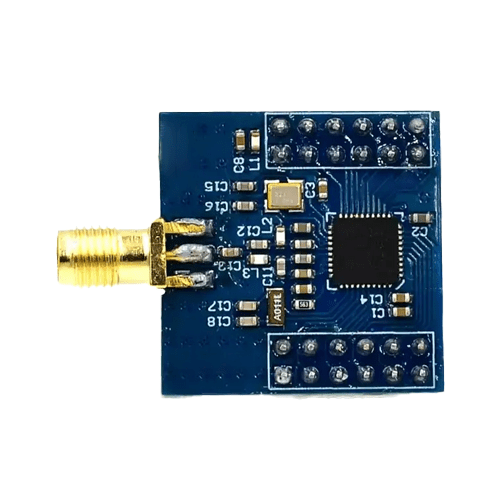

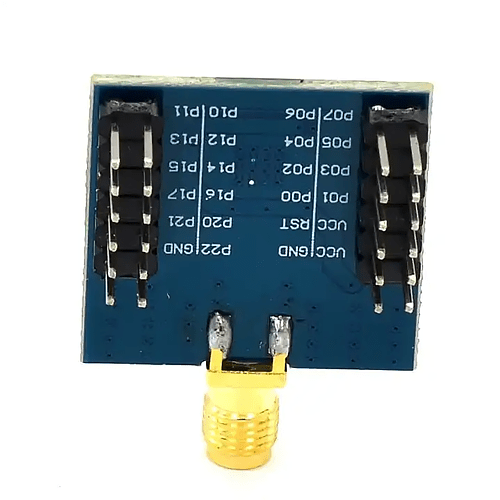

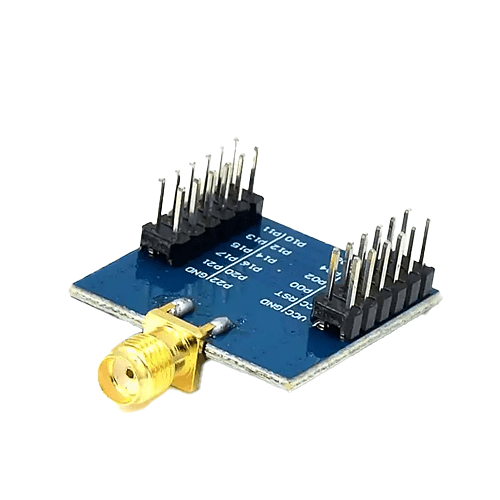

Wireless Module TTL Zigbee 2.4 G Design with TI CC2530F256 DC 2.1 V to 3.6 V – Amuse Tech Solutions
Employ the Wireless Module TTL Zigbee with 2.4G design and TI CC2530F256 chip, operating between DC 2.1V to 3.6V for reliable performance.
Description
Overview
Amuse Tech Solutions ZigBee Wireless Module TTL is designed with TI CC2530F256 that is a true system-on-chip (SOC) solution for IEEE 802.15.4, ZigBee applications, the module can be widely used in short distance wireless communication field, with low power consumption, small volume, strong anti-jamming capability. The ZigBee module is based on TI’s CC2530F256+CC2591 chip running ZigBee2007/PRO agreement. It has all the features of the ZigBee protocol, which is different from other types of ZigBee module.
Technical Specifications
| Antenna | 2.4 G antenna |
| Transmission Distance | 31.50 in (800 m) |
| Transmission Rate | Max to 2 K Byte/s |
| Voltage | DC 2.1 V to 3.6 V (3.3 V is recommended) |
| Operating Temperature | -40 °F to 176 °F (-40 °C to 80 °C) (Industrial) |
| Storage Temperature | -40 °F to 239 °F (-40 °C to 115 °C) |
| Size | 1.42 in x 1.01 in (36.0 mm x 25.6 mm) |
