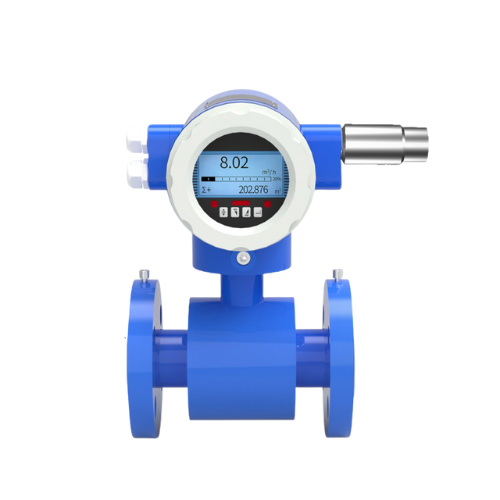

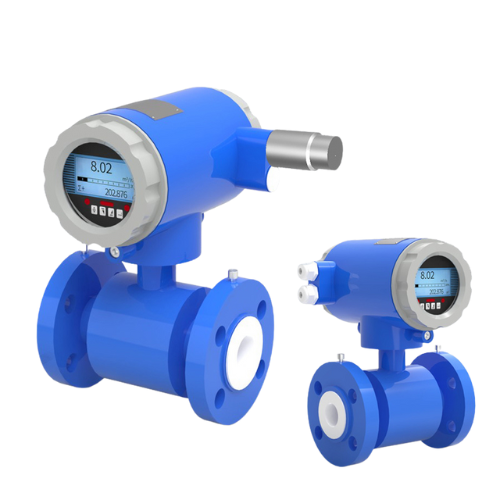

Wireless Electromagnetic Flow Meter with IP68 and 4-20mA Output – Amuse Tech Solutions
High-accuracy wireless electromagnetic flow meter for water and corrosive liquids, with IP68 protection and 4-20mA or pulse output.
Description
Technical Specifications
| Type | Wireless Electromagnetic Flow Meter |
| Accuracy | +/-0.5% |
| Flow Rate | 0.1 to 15 m/s |
| Measurement Range | 1000 m³ |
| Range Ratio | 150 to 1 |
| Flow Direction | Positive, Negative, Net Flow |
| Nominal Pressure | 1.6 MPa |
| Output | 4-20mA or Pulse, RS485 optional |
| Supply Voltage | 12V to 36V (customizable), 24V DC standard |
| Medium | Corrosive Liquid, Acids, Water, Oil, Alkali, Salt |
| Diaphragm Material | 316L Stainless Steel |
| Case Material | Stainless Steel or Carbon Steel |
| Protection Level | IP68 |
| Temperature | Operating: 14 °F to 122 °F (-10 °C to 50 °C) |
