Description

Overview

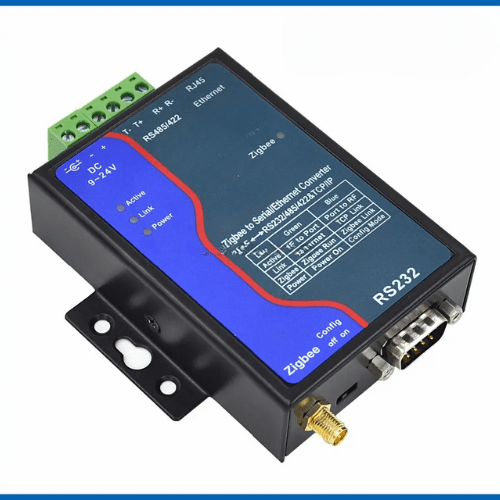

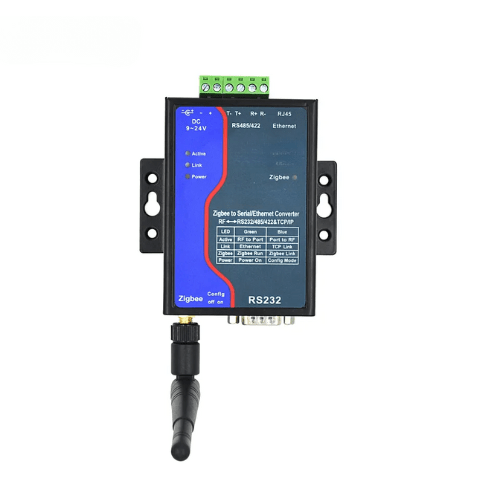

Amuse Tech Solutions Wireless Data Transmission Device is high performance product designed for industrial application, the transmission distance can be achieved to 2 km in the open. Using 2.4 G DSSS spread spectrum technology, the anti-jamming capability is strong. Compared to Wi-Fi, its wireless connection is farther, connection speed is faster, anti-jamming capability is stronger, networking is more convenient.



Features

• Long distance communication solution, high performance
• Big data transmission no packet loss
• ZLAN 9503 has multi-function of Zigbee to Ethernet
• The networking mode of Zigbee is flexible, can have many types
• Network capacity is larger, 16 channel optional
• 6 kinds of LED lights separately indicate data flow direction



Technical Specifications

Specification Parameters	Working Voltage	DC 9 V to 24 V
	Woking Current	9500: 50 mA at 9 V
		9503: start 250 mA at 9 V, stable 220 mA at 9 V,
	Environment Temp	-40 °F to 217 °F (-40 ℃ to 85 ℃)
	Environment Humidity	<95% RH
Wireless Communication	Transmission Distance	2000 m
	Frequency Range	2.405 GHz to 2.480 GHz
	Wireless Channel	16
	Receiving Sensity	-105 dbm
	Transmit Power	25 dbm
	Network Topology	point-to-point, star, tree, mesh
	Communication Protocol	IEEE 802.15.4/ZigBee standard protocol
	Network ID	0000 to FFFF
	Modulation System	DSSS
	Antenna Connection	External SMA male head antenna, Work frequency: 2.4 G, Frequency region between 2400 M to 2485 M
	Anticollision Loop	CSMA-CA and GTS CSMA-CA
Wire Communication	Data Interface	RS 232, RS 485/422, Ethernet 10 M/100 M
	Max Packet Size	100 bytes
	Serial Port Setup	Baud Rate: 1200 bps to 115200 bps, Check bit: None, Even, Odd, Data: 7, 8, Stop bit: 1
	Ethernet Protocol	ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS

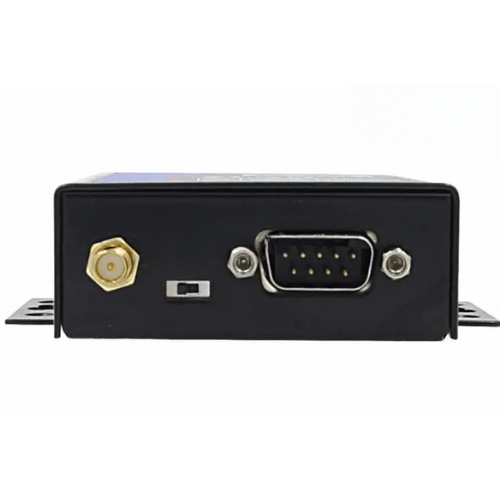

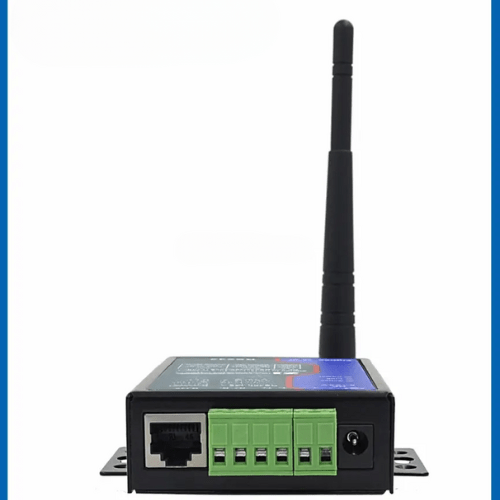

Figure	Interface	485/422: Terminal, 232: DB 9, Ethernet: RJ 45
	Power Supply	Inside positive outside negative, standard outlet
	Size	3.7 in x 2.5 in x 0.9 in (94 mm × 65 mm × 25 mm)

Click Here to Download Technical
Documentation (User Manual or Instruction Manual)
