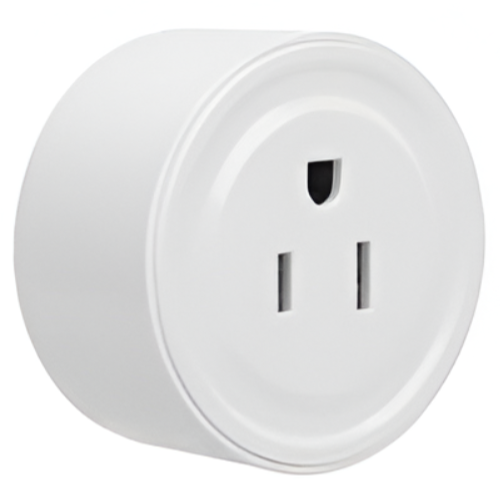

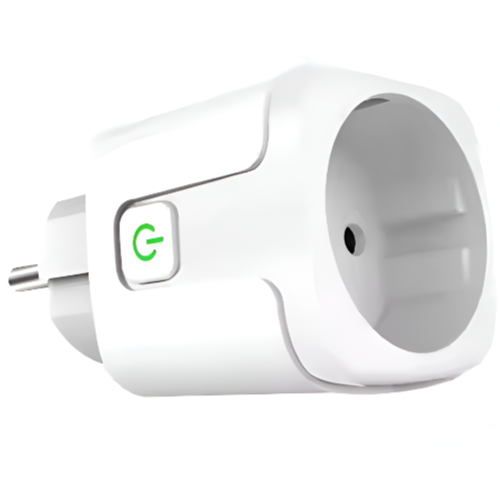

Wi-Fi Control Smart Socket with Timing Function and Share Control – Amuse Tech Solutions
Wi-Fi Control Socket supports <1.3W power consumption during operation and 0.2W power consumption during standby with red and blue indicator lights.
Description
Features
- Mobile app remote control.
- Timing function.
- Countdown function.
- Power-off memory.
- Status feedback.
- Share Control.
- Overload protection.
- Manual switch.
- Can be added in batches, group control.
- Support intelligent voice control.
- Electricity metering statistics.
- With Bluetooth distribution network and Bluetooth control.
Technical Specifications
| Chip | Default BK7231N, can be esp32 |
| Output Current | 16A |
| Operating Voltage | AC 100V to 240V 50Hz to 60Hz |
| Wi-Fi Distance
|
164.04 ft (50 m) outdoors,up to 98.43 ft (30 m) indoors (depending on building material and structure) |
| Wi-Fi Type | 2.4GHZ 802.11 bgn |
| Network Security Level | WPA or WPA2 |
| Standby Power Consumption | 0.2W per hour |
| Normal Load | 3520W |
| Maximum Service Life | 100,000 times |
| Indicator Light | Red and blue lights (red power light, blue Wi-Fi light) |
| Wi-Fi | Yes |
| Network | SDK |
| Grounding | Standard Grounding |
| Shell Material | PC + ABS fire rating V0 |
| Color | White |
| Working Humidity | <80% RH |
| Operating Temperature | -4°F to 122°F (-20℃ to 50℃) |
| Size | 1.97 in × 1.97 in × 3.31 in (50 mm × 50 mm × 84 mm) |
| Weight | 2.82 oz (80 g) |
