White LoRaWAN Gateway with BLE and PoE Support and Powerful Distance Range – Amuse Tech Solutions
Compact LoRaWAN gateway with 8 channels, BLE, and PoE support, utilizing SX1301 transceiver for reliable home or factory automation connectivity.
Description
Overview

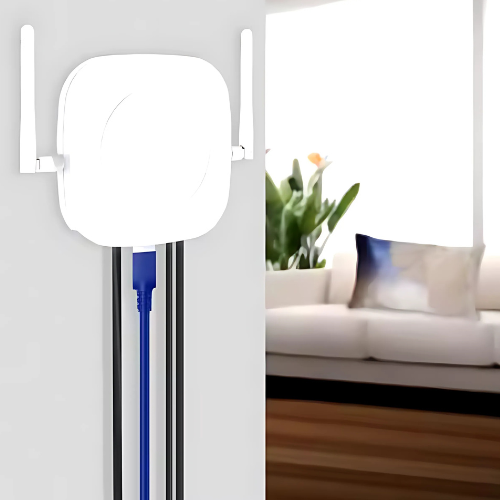

Amuse Tech Solutions white LoRaWAN gateway with BLE and PoE support and powerful distance range is a LoRaWAN gateway with 8 channels, and it employs Semtech’s high performance multi-channel transceiver SX 1301 or SX 1257 operating on the MTK platform. It is utilized indoors for home or factory automation purposes. Its compact size makes the installation of the gateway easy. It can be attached to a wall within your home or factory or installed on the roof.
Technical Specifications
| Bluetooth Chip | Nordic 52 series main |
| Battery Type | Rechargeable Li ion battery |
| Chipset | SEMTECH 1276 |
| BLE Chip | nRF52832c |
| Charge Time | 2.5 Hours at 5 V or 1 A |
| Back Haul Connectivity | Ethernet or Wi-Fi |
| WIFI Standard | IEEE 802.11 bgn |
| Protocol | LoRaWAN standard |
| Frequency | 433 or 470 MHz, 868 or 915 MHz |
| Lora Frequency | US 915 or AU 915 or AS 923 or EU 868 or IN 865 |
| 3 Axis Accelerometer | LIS 3 DHTR |
| Power Supply | PoE interface |
| Color | White |
| Material | PC and ABS |
| Dimension | 6.54 in x 4.13 in x 1.12 in (16.6 cm x 10.5 cm x 2.84 cm) |
| Weight | 7.58 oz. (215 g) |
