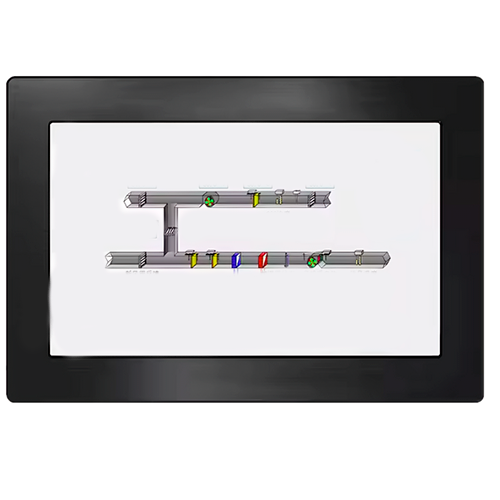

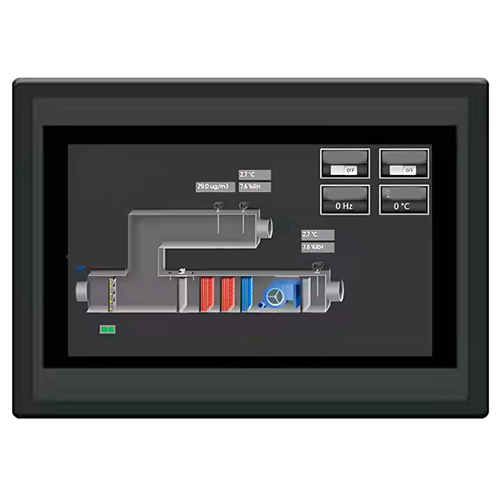

WEB 4G Touchscreen for M2M IoT Applications – Amuse Tech Solutions
Versatile WEB 4G with a TFT display and multiple ports for M2M IoT applications. Supports Linux and offers reliable performance.
Description
Features
- BTL,CE,ISO9001 SGS certifications
- Support converting more than 200 protocols to BACnet,Modbus ,MQTT,OPC UA,OPC XML-DA
- Easy to configure by X2View
- You can build SCADA, HMI, and alarming systems so that you can monitor and control the state of devices by smart phone, iPad or PC
- Cloud Platform Integration work with WEB gateway
- Support converting to BACnet server, Modbus server, MQTT/Cloud server
- Support WeChat, E-Mail,Ding Talk alarm
- Support user group management, configuration screen monitoring can set permissions
- Support various forms of timing, event triggering, and provide a custom function
- Support storing up to 200 historical points, save data every 5 minutes about a year
- Built-in MySQL database
- Map Storage can be customized
- Support the timer, which can be used to start/stop the device at a fixed time or set values
- Support remote monitoring the terminal devices by smart phone, iPad or PC
- Support cloud configuration
Technical Specifications
| Chipset | WEB HMI 4G |
| Application | M2M IoT, M2M and IoT Application |
| Systems | Linux |
| Power Supply | DC or AC 12 V to 24 V |
| Processor Speed | 1.4GHZ |
| Power Consumption | 8 W |
| Memory | DDR3 1G |
| Interface | 1 Ethernet Ports,4 RS 485,1 RS 232,1 Debug Serial Port |
| Flash | 4 GB |
| Display Resolution | 7 in (17.78 cm) TFT, 800 px X 600 px |
| AI (Read-Only) | 2048(0 to 2047) |
| AO (Read and Write) | 2048(0 to 2047) |
| AV (Read and Write) | 2048(0 to 2047) |
| BI (Read-Only) | 2048(0 to 2047) |
| BO (Read and Write) | 2048(0 to 2047) |
| BV (Read and Write) | 2048(0 to 2047) |
| MI (Read-Only) | 2048(0 to 2047) |
| MO (Read and Write) | 2048(0 to 2047) |
| MV (Read and Write) | 2048(0 to 2047) |
| 0X(Coil Status) Read and Write | 2048(1 to 2048) |
| 1X(Input Status) Read-Only | 2048(1 to 2048) |
| 4X(Holding Register) Read and Write | 2048(1 to 4096) |
| 3X(Input Register) Read-Only | 2048(1 to 4096) |
| Screen Resolution | 1024 ppi X 768 ppi |
| LCD Screen | 7 in (17.78 cm) TFT |
| Memory | DDR3 1G |
| Touch Screen | TFT |
| Operating System | Linux |
| Processor | 4-core 1.2GHz |
| Flash | 4 GB |
| Power Consumption | ≤8W |
| Power Supply | AC or DC 12 V to 24V (Recommended: DC) |
| Ports | 1 Network Port, 4 RS485 Ports, 1 232 Serial Port |
| Other | 1 Audio Input, 1 Audio Output, 1 Buzzer |
| Material | Aluminum Front Shell, Sheet Metal Rear Shell |
| Network | High Performance 328.08 feet 100M or 32.81 feet (10M) Self-adaptive Industrial Network Adapter, Supports AUTO MDI/MDIX |
| Humidity | 10% to 90% No Condensation (at work), 15% to 95% No Condensation (Storage and Transportation) |
| IP Rating | IP65 for front Panel, IP20 for Back Case |
| Temperature | 14°F to 122°F (-10 to 50 ℃) (at work) -4°F to 158°F (-20 ℃ to 70℃) (Storage and Transportation) |
| Hole Size | 8.27 in x 5.76 in (21.05 cm x 14.65 cm) |
| Product Size | 8.82 in x 6.30 in x 1.79 in (22.4 cm x 16 cm x 4.55 cm) |
| Weight | 1.43 lbs (0.65 kg) |
