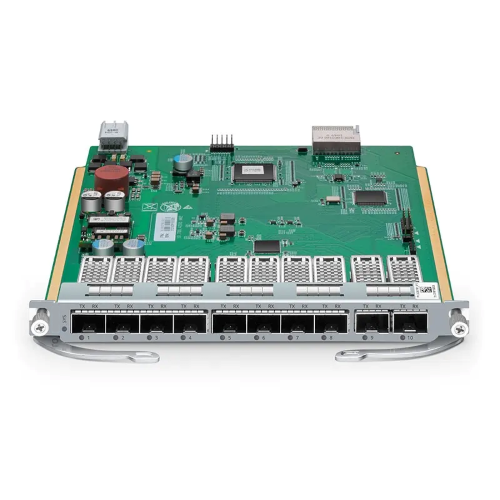

WDM Fiber Optic Converter, 10 SFP Slots, 11.1 Gbps – Amuse Tech Solutions
Versatile WDM fiber optic converter with 10 SFP slots, supporting up to 11.1 Gbps, multiple protocols, and remote management for advanced network applications.
Description
Overview
Amuse Tech Solutions WDM Fiber Optic Converter, 10 SFP Slots, 11.1 Gbps is equipped with 10 SFP or SFP+ slots and it can support multiple protocols such as 100 Mbps to 10 Gbps Ethernet, 1 G to 10 G FC, SONET or SDH, OTU2 or 2e, SDI, HD-SDI, CPRI, etc. over common fiber optical networks. It is designed for wavelength conversion, distance extension and optical signal repeat, and used in Metro, Regional and Long Haul WDM optical networks.
Features
- Transport 100 M to 11.1 G Ethernet
- Support 1+1 Facility Protection
- Support Standard MSA Pluggable SFP and SFP+
- Remote Management with WEB
- Applied for Metro 10 Gigabit Ethernet Connectivity
- Cable Landing Service Extension
- Functions as a Fiber Mode Converter
- CWDM or DWDM Transponder
- Fiber Repeater
- 5 Independent ITU Standard-based WDM Transponder
Technical Specifications
| Transmission Speed | 100 Mbps to 11.1 Gbps |
| Interface Type | SFP or SFP+ |
| Transceiver Slot Number | 10 |
| Service Channel Number | 5 |
| Power Consumption | <15 W |
| Latency | <1.8 us |
| Automatic Laser Shutdown (ALS) | Supported |
| Digital Diagnostic Monitoring (DDM) | Supported |
| MTBF | >140127 Hrs |

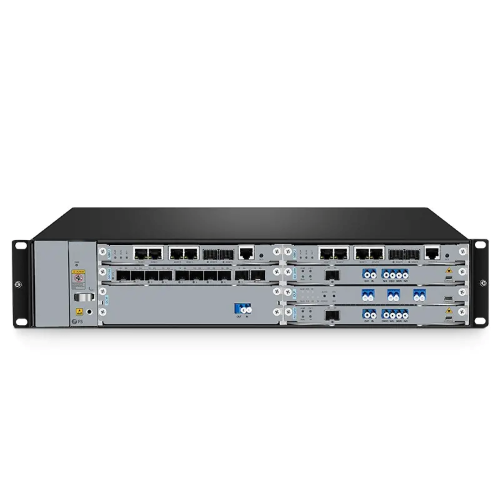

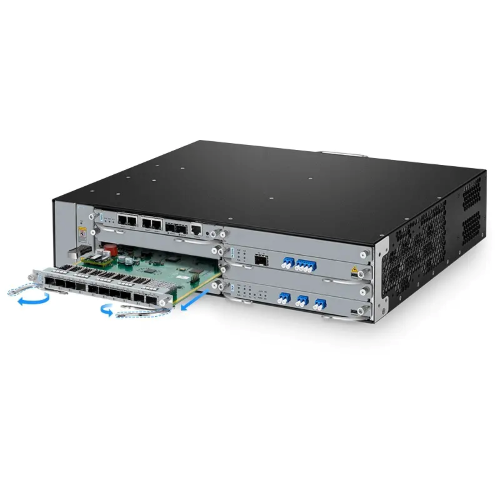

| Housing | Pluggable Module (Occupies 1 slot in M6200 WDM Network managed chassis) |
| Operation Temperature | 32 °F to 122 °F (0 °C to 50 °C) |
