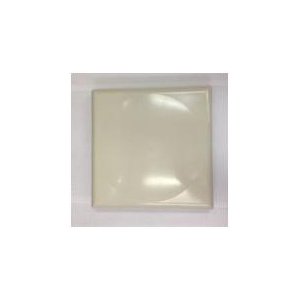

Waterproof UHF RFID Antenna 902 MHz Circular Polarization, IP66 Protection – Amuse Tech Solutions
This durable UHF RFID antenna offers circular polarization, easy installation, and IP66 rated waterproofing, ideal for indoor environments.
Description
Overview
The UHF 900 MHz antenna is waterproof and easy to install with the 4 port Gen 2 fixed reader.
Technical Specifications
| Polarize style | Circular polarization |
| Operating Frequency | 902 MHz to 928 MHz |
| Center Frequency | 915 MHz |
| Gain | 7 dBi ± 1 dBi |
| VSWR | < 1.3:1 (902 MHz to 928 MHz) |
| Natural impedance | 50 Ω |
| Maximum Power | 10 W |
| Dimensions | 245 mm × 235 mm × 40 mm |
| Weight | 470 g |
| Case Material | Glass fiber reinforced plastic |
| Protection Rating | IP66 |
| Operating Temperature | -20 °C to 70 °C |
| Storage Temperature | -20 °C to 70 °C |
| Humidity | 10% to 90% relative |
Compatibility
- Antenna Compatibility: Any 902 MHz to 928 MHz. Reader
- Antenna Connection: N-type Female
- Transponder Compatibility: EPC G2, ISO18000 6B
