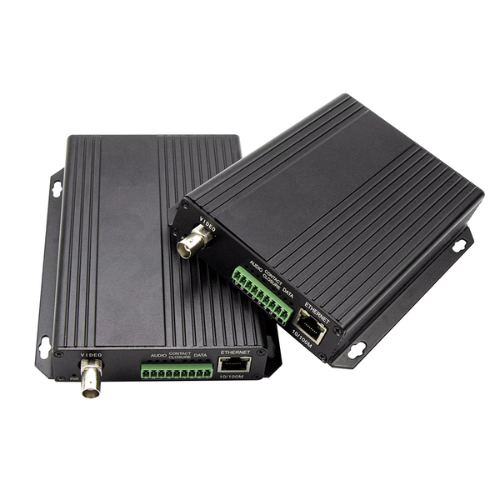

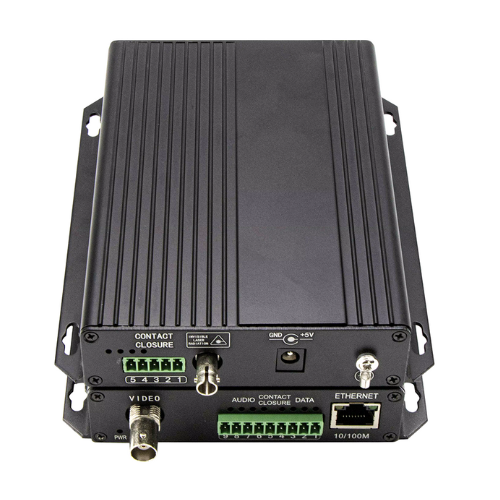

Video and Audio IP Converter with High Resolution Support – Amuse Tech Solutions
This Video and Audio IP Converter with High Resolution Support high performance electronic device with versatile conversion, HD and bidirectional transmission.
Description
Features
- Versatile Conversion
- High Resolution Support
- Bi Directional Data Transmission
- Dry Contact Integration
- IP Compatibility
- Reliable Performance
- Wide Range of Applications
Technical Specifications
| Work Mode | Full duplex / half duplex, autosensing |
| Network Speed | 10 Mbps / 100 Mbps, autosensing |
| Interface | RJ45 |
| S/N ratio | > 95 dB (weighting) |
| Interface | Phoenix terminal |
| Sample Rate | 48 kHz |
| Resolution | 16 bits |
| Impedance / Voltage | 600 ohm (unbalanced) / 2.0 Vp p |
| Frequency Response | 10 kHz to 20 kHz |
| Total Harmonic Distortion | < 0.05 % |
| Power | Standalone: 220 V AC to 5 V; 12 V DC, Rack: dual 220 V; 48 V AC, card: powered by chassis |
| Storage Temperature | -40 °F to 185 °F (-40 ℃ to 85 ℃) |
| Humidity | 95 % RH |
| Temperature | -31 °F to 167 °F (-35 ℃ to 75 ℃) |
