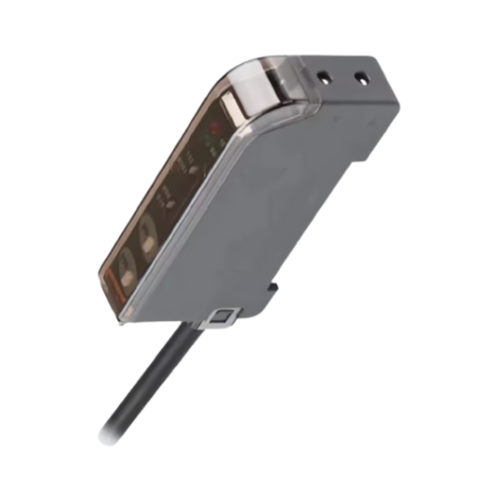

Vibration Resistant Optical Fiber Amplifier Photoelectric Position Sensor – Amuse Tech Solutions
Vibration-resistant optical fiber amplifier with high precision and stability. Suitable for harsh environments, offering quick response and automatic light compensation.
Description
Features
- High vibration resistance for stable performance
- Automatic light compensation technology
- Quick response with multiple application modes
- Easy customization according to user requirements
Technical Specifications
| Output | NPN or PNP (NC/NO) |
| Supply voltage | 12 V DC to 24 V DC ± 10 %, Ripple (P to P): ≤ 10 % |
| Anti ambient light | Incandescent: ≤ 20,000 lux; Daylight: ≤ 30,000 lux |
| Housing material | PC + ABS |
| Output method | PNP or NPN |
| Current consumption | PNP: 900 mW; NPN: 950 mW |
| Material | Polycarbonate |
| Output indication | 4-digit LED digital display, LED bar display, action display |
| Consumption current | < 60 mA |
| Response time | 25 µs, 50 µs, 100 µs, 300 µs |
| Detection accuracy | > 0.01 mm (fiber-related) |
| High pressure resistant | 1000 V/AC 50/60 Hz 60 s |

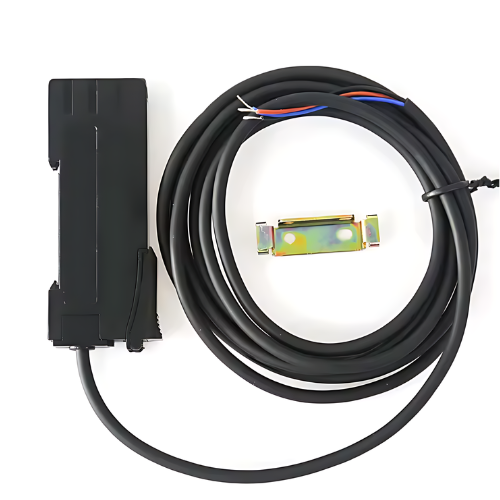

| Connection | 6.56 ft PVC cable (200 cm) |
| Ambient temperature | 14 °F to 131 °F (-10 °C to 55 °C) (no icing) |
| Size | 1.33 in x 0.44 in x 2.95 in (3.3 cm x 1.1 cm x 7.5 cm |
| weight | 3.17 oz (90 g) |
