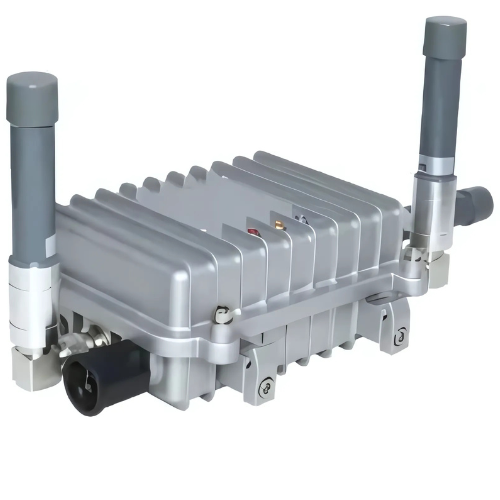

Versatile LoRaWAN Outdoor Gateway for Smart IoT Connectivity with IP67 Rating – Amuse Tech Solutions
This advanced LoRaWAN Outdoor Gateway features a Quad-Core CPU, and IP67 waterproof housing, ideal for reliable smart IoT connectivity.
Description
Overview
Amuse Tech Solutions versatile LoRaWAN outdoor gateway for smart IoT connectivity with IP67 Rating. It’s a smart Gateway with PoE or DC power supply. Its flexibility allows it to be used in many various applications. It can be used to build a private network. It provides reliable connectives to a wide range of devices through wireless protocol including Wi-Fi 2, 4G, 5G, BLE5.2, LoRaWAN and LTE.
Features
- Quad Core CPU,1.5 GHz, 64-bit ARM,512 MB DDR4,8 GB eMMC.
- Support 1Gb PoE switch power supply
- Base on the LoRaWAN Concentrator Engine: SimTech SX1302
- Support WIFI 2.4 G/5 G IEEE 802.11 b/g/n/ac, LTE Cat 14 G
- LoRaWAN Protocol: V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C
- Support BLE 5.2
- Support GPS, GLONASS, Galileo and QZSS
- Support IP67 waterproof housing
- Support OTA
- Support MQTT & HTTP & HTTPS;
- Support remote updates
Technical Specifications
| Working Frequency | RU 864, IN 865, EU 868, US 915, AU 915, KR 920, AS 923 |
| CPU | Quad-core Cortex-A35 |
| System | Linux |
| RAM | 2 GB |
| Security Module | ATECC608B |
| ROM | eMMC 32 GB (up to 128 GB) |
| Network Interface | The network interface supports CAT-5 or CAT-5 E to transmit data and POE Power Supply (voltage range is 44 V to 57 V). It is WAN or LAN variable |
| Indicator LEDs | 1) Power LED normally on when powered on 2) Network LED normally on when connected 3) LTE Card indicator |
| Ingress Protection | IP67 |
| Communication | Wi-fi, BLE, LoRaWAN, LTE |
| GPS | GPS, GLONASS, Galileo and QZSS (LTE integrated) |
| LTE | Cat1 |
| Operating Temperature | -4°F to 149°F (-20 ºC to 65 ºC) |
