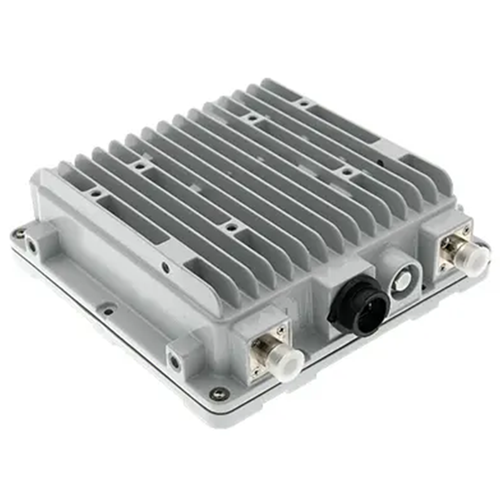

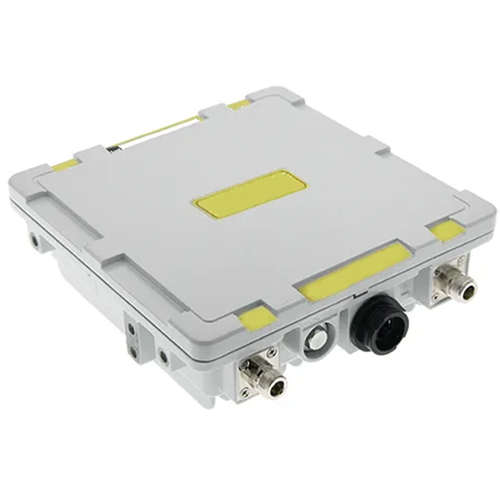

Versatile Industrial Smart LoRaWAN Compact Gateway 4G, GPS Ethernet Device – Amuse Tech Solutions
Amuse Tech Solutions Industrial LoRaWAN Compact Gateway with 4G GPS supports dual LoRa concentrators for up to 16 channels, with PoE or solar power & IP67-rated industrial-grade enclosure.
Description
Technical Specifications
| LoRa RX Sensitivity | -139 dBm (Min) at SF12, width 125 KHz |
| LoRa TX Power | 23 dBm to 25 dBm (Max) |
| Comm Distance | City: 1.2 mi to 3.1 mi (2 km to 5 km), Field: 3.1 mi to 6.2 mi (5 km to 10 km) |
| CPU | i.MX6ULL Cortex-A7, 586 MHz to 900 MHz |
| Memory | 256 MB DDR3L (up to 512 MB) |
| Storage | 4 GB eMMC (up to 64 GB) |
| Connectivity | LoRa up, LAN or LTE down, Wi-Fi AP, GPS |
| LTE | LTE-TDD, LTE-FDD, HSPA+, TD-SCDMA, EVDO, GSM/GPRS/EDGE (CAT4) |
| Lightning Protection | 10 kV Lightning protection design |
| Power Supply | PoE (48 V per 0.5 A, 24 W) or optional DC 12 V |
| Power Consumption | ≤ 5 W (Typical) |
| Operating Humidity | 0% to 95% RH (non-condensing) |
| Protection | IP67-rated |
| Enclosure Material | Die-cast aluminium |
| Operating Temperature |
-40 °F to 185 °F (-40 °C to 85 °C) |
| Dimensions | 8.46 in x 8.46 in x 3.15 in (21.5 cm x 21.5 cm x 8 cm) |
