Vehicle Tracker Device Sensors Extended GPIOs USB Interface LTE CAT.1-Amuse Tech Solutions

Description

Overview

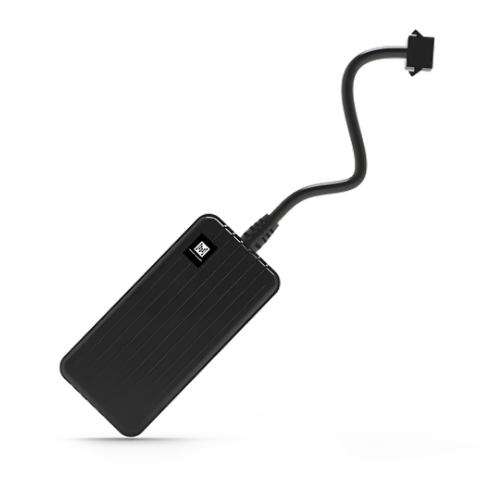

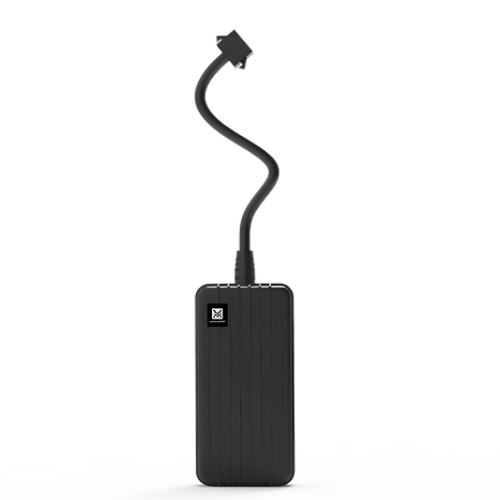

Amuse Tech Solutions vehicle tracker is an intelligent vehicle monitoring terminal. The device integrates CAT.1/CAT.M/GSM/NBIOT, GNSS,Wi-Fi, BLE, a variety of sensors and extended GPIOs. It contains several variants covering different regions and networks around the world. The vehicle’s position, movement, and state are monitored, which encrypted (TEA, AES or RSA) into a package and uploaded to the cloud platform in real time. In case of over speeding, jamming, excessive Idling, unplug and crash, alarms will be reported and displayed on the platform. If necessary, with our device, it’s possible to turn off the engine remotely through the platform. so, asset transportation scheduling and analysis can be managed through the cloud platform visually, which improves transportation efficiency and reduces risks and costs.



Features

• Integrate GNSS, Wi-Fi, LBS Multi-positioning technology, can quickly and accurately locate the vehicle, and support BLE positioning indoors
• Worldwide LTE CAT.1/CAT.M/, NBIOT and GSM/GPRS/EDGE coverage
• Integrate multiple sensors to realize Unplug detection, Towing detection, Crash detection, Vibration detection
• Support multiple peripheral interfaces, Digital input/output, RS485/TTL
• Digital input can be used for ignition (ACC), door or alarm button status monitoring
• The digital output can be used to remotely control engine to turn off
• The visualized cloud platform supports the full-scene status monitoring of vehicles and goods



Technical Specifications

Use	Automotive
Supply Voltage	9 V to 40 V (9 V to 100 V optional)
Stand-by Current	≤10 mA
Operating Temperature	−4 ºF to 158 ºF (-20 ºC to +70 ºC)
Dimensions	3.22 in x 1.5 in x 0.70 in (82 mm x 40 mm x 18 mm)
Weight	(56 G) (VT001-G)
Firmware Upgrade	USB interface, OTA
