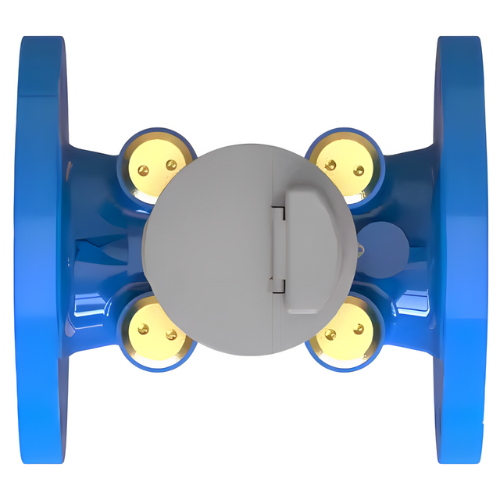

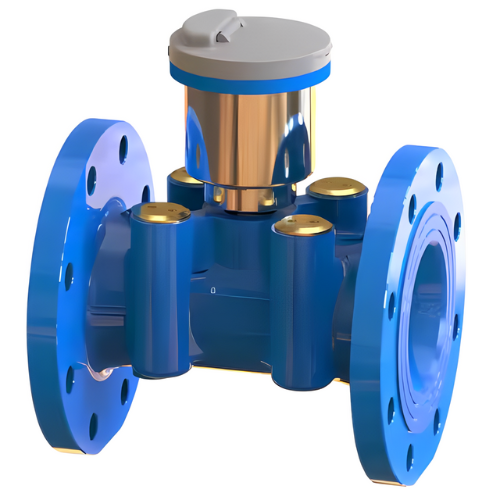

Ultrasonic Water Meter with Leak Detection and Pressure Sensor – Amuse Tech Solutions
Explore the Ultrasonic Water Meter with leak detection, pressure sensor, and low pressure loss. It features LoRaWAN, NB-IoT, and long-lasting battery.
Description
Features
- Maintenance-free
- Tamper-proof design
- Assured reliability
- Leakage detection
- Low pressure loss
- Bi-directional flow
- 9 dights LCD display
- IP68 waterproof
- Long battery life
Technical Specifications
| Type | Ultrasonic meters | ||||||||||||||||||
| Customized Support | OEM, ODM, OBM | ||||||||||||||||||
| Output Options | LoRaWAN, LoRa, NB-IoT, 4G, RS485, MBUS | ||||||||||||||||||
| Feature | Leakage detection, no moving parts, built in pressure sensor | ||||||||||||||||||
| Dynamic Range | Q3/Q1 = 250 (160 or 315 or 400 or 500) | ||||||||||||||||||
| Pressure Loss Class | ∆P63 (∆P40/∆P25) | ||||||||||||||||||
| Pressure Class | MAP10 (MAP16) | ||||||||||||||||||
| Electromagnetic Class | E1 (E2) | ||||||||||||||||||
| Flow Sensitivity Class | U5/D3 (U0/D0) | ||||||||||||||||||
| Size | DN50 | DN65 | DN80 | DN100 | DN125 | DN150 | DN200 | DN250 | DN300 | ||||||||||
| Normal Flow Q3 (m3/h) | 25 | 40 | 63 | 100 | 160 | 250 | 400 | 630 | 1000 | ||||||||||
| Starting Flow (m3/h) | 0.02 | 0.025 | 0.03 | 0.035 | 0.05 | 0.07 | 0.1 | 0.15 | 0.25 | ||||||||||
| Environmental Class | Class B/O | ||||||||||||||||||
| Communication Interfaces | LoraWan, Lora, NB-IoT, 4G, RS485, MBUS, Pulse, 4 mA to 20 mA, etc. | ||||||||||||||||||
| Data Storage | Data logger with 730 daily totals and 24 monthly totals | ||||||||||||||||||
| Power Supply | DC 3.6 V, Lithium Battery | ||||||||||||||||||
| Indication Device | 9 digits | ||||||||||||||||||
| Standard | ISO4064:2014 or OIML: R49-2013 | ||||||||||||||||||
| Protection Class | IP68 | ||||||||||||||||||
| Temperature Class | T30 (T50) | ||||||||||||||||||
| Size | DN50 to DN2400 | ||||||||||||||||||
| Size | DN50 | DN65 | DN80 | DN100 | DN125 | DN150 | DN200 | DN250 | DN300 | ||||||||||
| Dimensions | L | 7.87 in (20 cm) | 7.87 in (20 cm) | 8.85 in (22.5 cm) | 9.84 in (25 cm) | 9.84 in (25 cm) | 11.81 in (30 cm) | 13.77 in (35 cm) | 17.71 in (45 cm) | 19.68 in (50 cm) | |||||||||
| W | 6.49 in (16.5 cm) | 7.28 in (18.5 cm) | 7.87 in (20 cm) | 8.85 in (22.5 cm) | 10.23 in (26 cm) | 11.41 in (29 cm) | 13.77 in (35 cm) | 16.33 in (41.5 cm) | 18.7 in (47.5 cm) | ||||||||||
| H1 | 5.94 in (15.1 cm) | 6.14 in (15.6 cm) | 6.77 in (17.2 cm) | 7.04 in (17.9 cm) | 7.48 in (19 cm) | 8.03 in (20.4 cm) | 8.89 in (22.6 cm) | 10.31 in (26.2 cm) | 11.22 in (28.5 cm) | ||||||||||
| H | 9.09 in (23.1 cm) | 9.64 in (24.5 cm) | 10.55 in (26.8 cm) | 11.29 in (28.7 cm) | 12.44 in (31.6 cm) | 13.54 in (34.4 cm) | 15.55 in (39.5 cm) | 18.18 in (46.2 cm) | 20.39 in (51.8 cm) | ||||||||||
