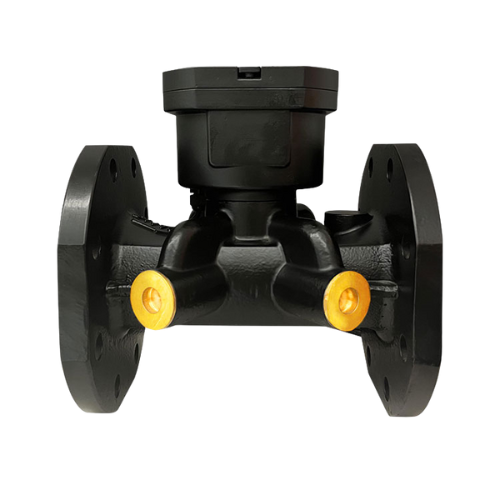

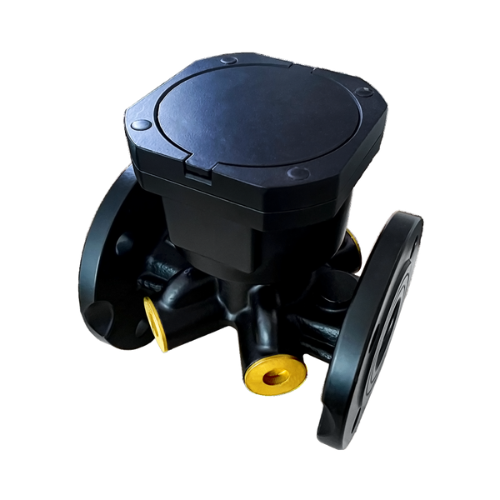

Ultrasonic Water Meter with IP68 and NB-IoT Connectivity – Amuse Tech Solutions
High-precision ultrasonic water meter with IP68 protection, NB-IoT connectivity, horizontal/vertical installation, and 24-month data storage.
Description
Technical Specifications
| Type | Ultrasonic meters, Prepaid water meters, Digital |
| Flow Rate | 63 m³/h |
| Measurement Range | 0.25 to 78.75 m³/h |
| Connectivity | Flanged |
| Pressure Rating | MAP16 |
| Accuracy Class | Class 1, Class 2 |
| Flow Field Sensitivity | U5 to D3 |
| Communication Mode | RS-485, M-BUS, Pulse, LoRa, GPRS, GSM, NB-IoT |
| Data Storage | 24-month historical data, alarm time and alarm source |
| Internet-of-Things Networking | NB-IoT, complete operation and management system platform |
| Installation Mode | Horizontal to Vertical |
| Protection Class | IP68 |
| Temperature | 86 to 122 °F (30 to 50 °C) |
| Size | 8.86 in x 7.87 in x 10.28 in (225 x 200 x 261 mm) |
