Ultrasonic Multifunctional Equipment with Portable Design – Amuse Tech Solutions

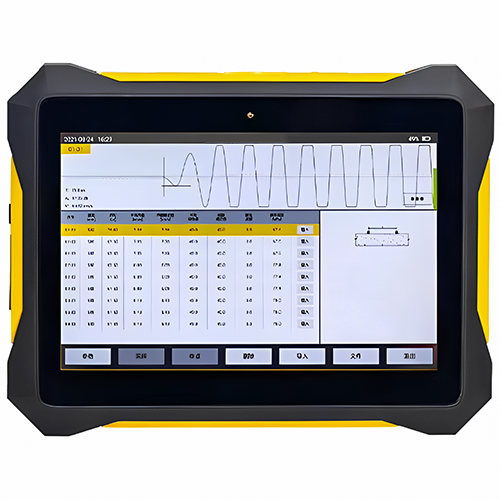

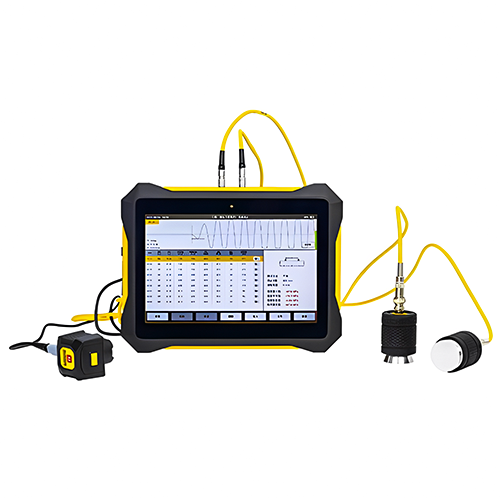

Ultrasonic device for concrete and rock mass testing with automatic interpretation, touch screen, data storage, and powerful analysis software.
Description
Features
- Automatic Interpretation
- User-Friendly Interface
- Portable Design
- Data Storage
Technical Specifications
| Number of Channels | Two channels |
| Display Mode | 10.1 in color LCD screen (1280×800) |
| Trigger Mode | Automatically triggered |
| Sampling Interval | 0.025 μs to 2000 μs |
| Sampling Length | 512 to 2048 points multi-file optional |
| Receiving Sensitivity | ≤ 10 μV |
| Measurement Range of Sound Time | 0 μs to 4000000 μs |
| Amplitude Reading Range | 0 dB to 170 dB |
| Transmission Voltage | 125 V, 250 V, 500 V, 1000 V multiple options |
| Pulse Width of Emission | 0.1 μs to 100 μs |
| Storage Capacity | 16 G |
| Transfer Mode | special U disk |
| Charging Power Supply | AC100 to 240 V, 50/60 Hz, output 12.6 V DC, 3.0 A |
| Operating Temperature | -4 ℉ to 140 ℉ (-20 ℃ to +60 ℃) |
| Depth Measurement Range | 0.19 in to 19.68 in (0.5 cm to 50 cm) |
| Width Measurement Range | 0.00039 in to 3.93 in (0.001 cm to 1 cm) |
| Host Volume | 11.14 in x 8.50 in x 1.61 in (28.3 cm × 21.6 cm × 4.1 cm) |
| Host Weight | 3.96 lb. (1.8 kg) |
