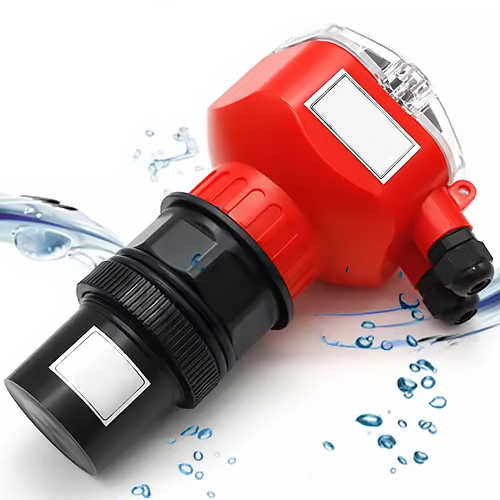

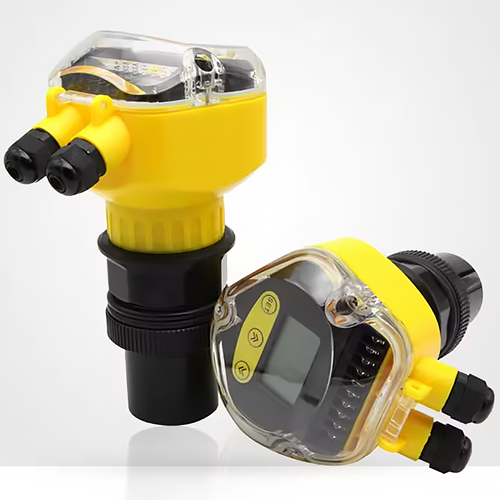

Ultrasonic Fuel Level Sensor with High Accuracy and Output – Amuse Tech Solutions
Explore the Ultrasonic Fuel Level Sensor designed for precise fuel level monitoring with high accuracy, versatile outputs, and durable construction.
Description
Technical Specifications
| Accuracy | 0.25%FS to 0.5%FS |
| Measuring Range | 0-100 cm to 5000 cm (0-39.37 into 1968.5 in) (optional) |
| Output | 4mA to 20mA, 0V to 5V, 0V to 10V, 1V to 5V |
| Communication | RS485 |
| Power Supply | 24VDC / 12VDC |
| Blind Zone | 25 cm to 80 cm (9.84 into 31.5 in) |
| Working Pressure | 2 bars (Explore Proof Type: 5 bar) |
| Resolution | 0.3 cm (0.12 in) (0.1%FS or max of them) |
| Level Range | Standard Types: 196.85 in, 393.7 in, 590.55 in, 787.4 in, 1181.1 in, 1968.5 in  (500 cm, 1000 cm, 1500 cm, 2000 cm, 3000 cm, 5000 cm) |
| Display | English language LCD display |
| Analog Output | 4mA to 20mA, 1V to 5V, 0V to 5V, 0V to 10V |
| Relay/Alarm Output | AC 250V / 8A; DC 30V / 5A |
| Explore Proof | Ex(ia)IICT6 |
| Material of Housing | Polycarbonate + Fiberglass |
| Waterproof Rating | Standard Type: IP66 |
| Environment Temperature | Meter: -4°F to 140°F (-20°C to 60°C); Sensor: -4°F to 176°F (-20°C to 80°C) |
