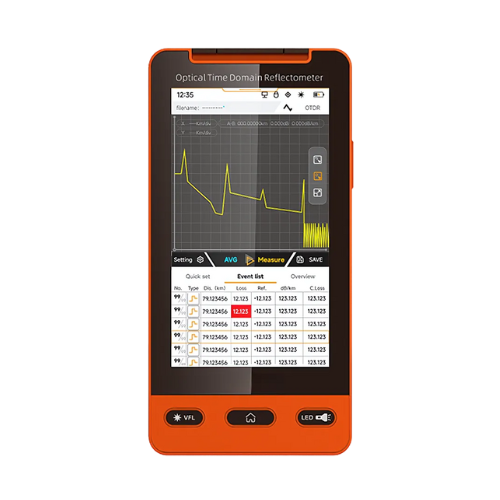

Ultra Thin Portable Design with Built in Testing Modules – Amuse Tech Solutions
Portable OTDR with dual wavelengths, offering high dynamic range for accurate fiber optic testing. Designed for reliable performance.
Description
Features
- Ultra-thin portable design
- Multi-touch capacitive screen
- Built-in testing modules
- Rechargeable lithium battery
Technical Specifications
| Use | FTTX |
| Network | Wireless LAN, Wired LAN, 4G, 3G |
| Certification | CE, Battery Transport Report available |
| Dynamic Range | 1310/1550nm 36/34dB |
| Data Transmission | USB-Type C |
| Power Supply | Lithium Battery; USB-Type C |
| OEM Welcome | Special price for big order |
| Distance Accuracy | ± (3.28 ft + Measuring Distance × 5 × 10⁻⁵ + Sampling Resolution) |
| Min Sampling Resolution | 256,000 |
| Distance Resolution | 0.39 in (0.01 m) |
| Attenuation Accuracy | ±0.05 dB/dB |
| Reflectance Accuracy | ±4 dB |
| Event Dead Zone (EDZ) | 9.8 ft (3 m) |
| Attenuation Dead Zone (ADZ) | 26.2 ft (8 m) |
| Data Storage | > 1,000 Groups; External USB Drive Supported |
| Operating/Storage Temp. | 14 °F to 122 °F / -4 °F to 158°F (-10°C to 50°C / -20 °C to 70°C) |
| Dimension | 6.3 in x 3.1 in x 0.7 in (16 cm x 8 cm x 1.8 cm) |
