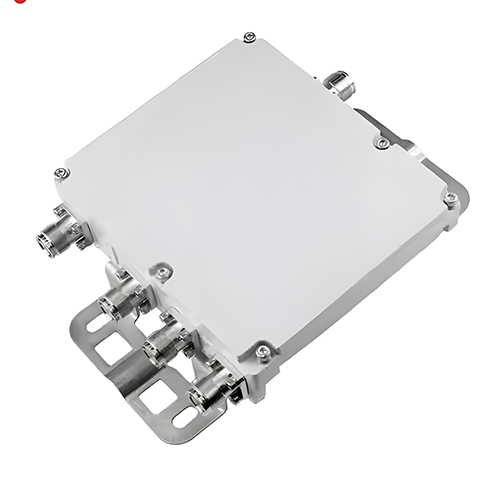

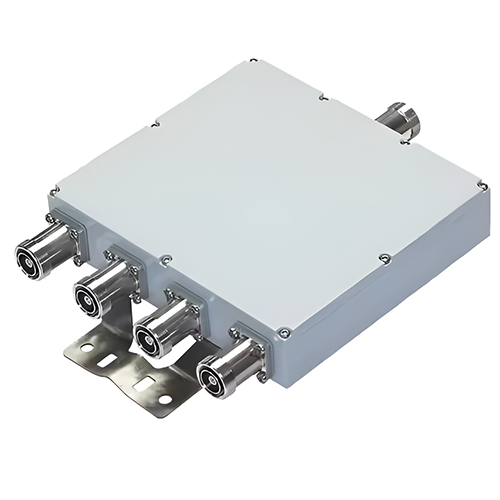

Ultra Precision RF Combiner with High Isolation and Low Signal Loss – Amuse Tech Solutions
Discover 4-Way RF Combiner with low PIM, high isolation, and durable IP67 design for reliable indoor or outdoor signal applications.
Description
Features
- 4-way combiner for feeder sharing
- High directivity ensures signal precision
- Excellent isolation minimizes interference
- Low insertion loss boosts efficiency
- Low VSWR for optimal performance
- Low PIM (IM3) signal clarity
- DIN-Female connectors for compatibility
- Durable design for extended usage
- Compact structure for easy integration
- Reliable performance in various environments
Technical Specifications
| Connector | DIN-female |
| Operating Humidity | 5% to 95% |
| Waterproof Grade | IP67 |
| Application | Indoor or Outdoor |
| Mounting | Pole or Wall Mount |
| PIM (IM3) | ≤ -150dBc , 2 x 20W |
| Frequency Range | 698MHz to 960MHz |
| Isalution | ≥80 dB |
| Impedance | 50Ω |
| Input Power | ≥ 200 W |
| Insertion Loss | ≤0.6dB |
| Input Power | ≤200w |
| Isolation(dB) | ≥80dB |
| Operating Temperature | -4°F to 140°F (-20 ℃ to 60℃) |
| Weight | 5.952 lb (2.7 Kg) |
