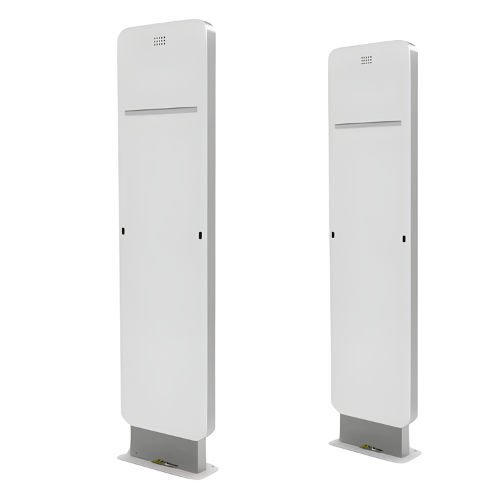

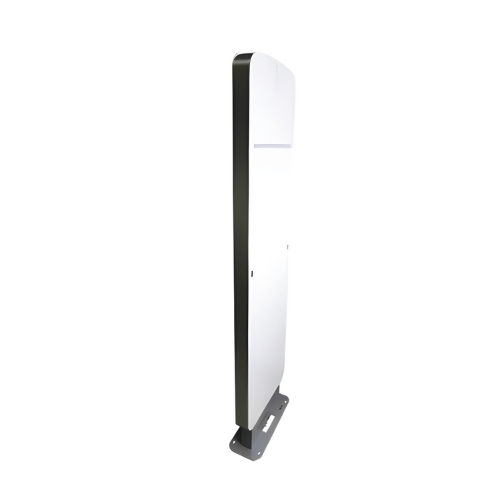

UHF RFID Wall-Mounted Anti-Theft Portal – Infrared Beam
This wall mounted RFID portal has adjustable frequency range, tag reading distance and robust construction.
Description
Overview
This wall mounted RFID portal has adjustable frequency range, tag reading distance and robust construction. Perfect for logistics and a durable design.
Features
- Touch screen switch
- Two color LED alarm light bar
- Infrared beam
- Accurate, no blind spots
Technical Specifications
| Frequency Range | 860 MHz to 960 MHz |
| RF Output | 0 dbm to 30 dbm (adjustable） |
| Communication Interface | RJ45 RS 232 or wireless transmission |
| Operating Voltage | AC 220 V ± 10 ％ |
| Power | 20 W |
| Accessories | Audible alarm |

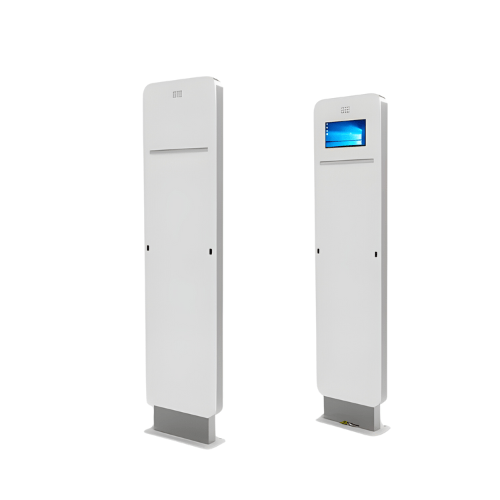

| Android System (Optional) | Optional external touch screen (10.41 inch) Android operating system 450TP） |

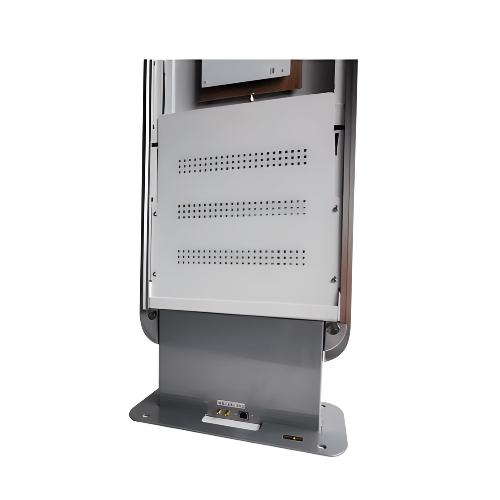

| Installation Method | No slotting with 4.92 ft (1.5 m) stainless steel cable trough |
| Reading Distance Width | 3.28 ft to 13.12 ft (1 m to 4 m) |
| Operation Temperature | 14 °F to 122 °F (- 10 ℃ to 50 ℃) |
| Dimension | 14.57 in x 2.44 in x 58.43 in (370 mm x 62 mm x 1484 mm) |
| Weight | 77.16 lbs (35 KG) |
