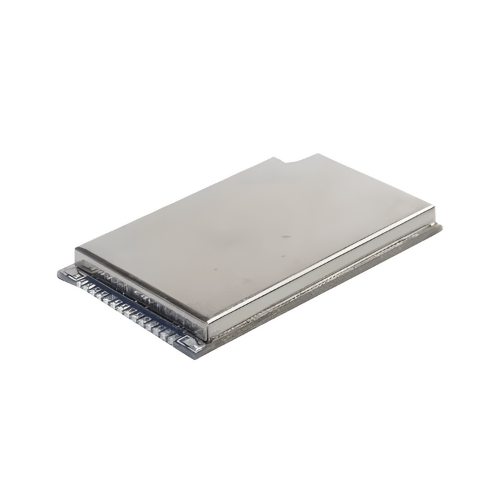

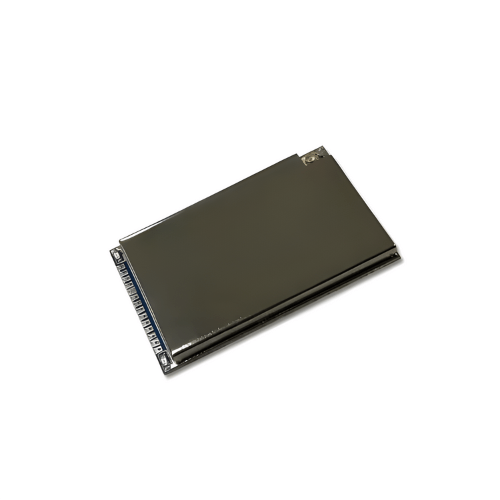

UHF RFID Reader Module for Embedded System, 902-928 MHz, 7.87 in Read Range – Amuse Tech Solutions
Compact UHF RFID module supporting ISO18000-6C protocol, featuring adjustable RF power, TTL/RS232 ports, and a versatile 7.87 in to 3.28 ft reading range.
Description
Technical Specifications
| Protocol | ISO18000-6C (EPC C1 GEN2) |
| Frequency | 902 MHz to 928 MHz or 865 MHz to 868 MHz |
| Communication Port | TTL, RS232 (customized) |
| RF Power | 0 dBm to 18 dBm (adjustable) |
| Operating Current | Peak current 200 mA |
| Reading Range | 7.87 in to 3.28 ft (20 cm to 1 m) |
| Reading Tags | Single tag |
| Antenna Port | IPEX |
| Working Voltage | +3.6 V to +5.5 V |
| Dimension | 1.63 in × 0.98 in × 0.11 in (41.5 mm × 25 mm × 3mm) |
