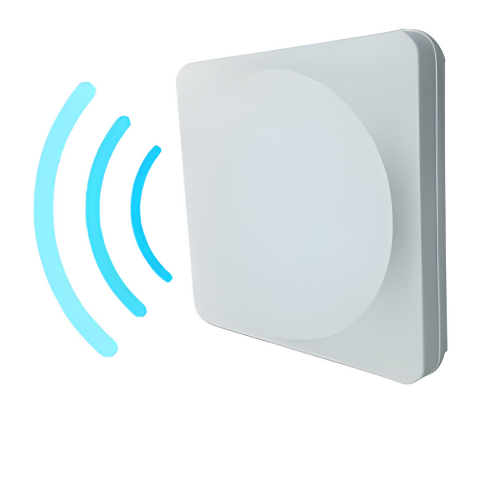

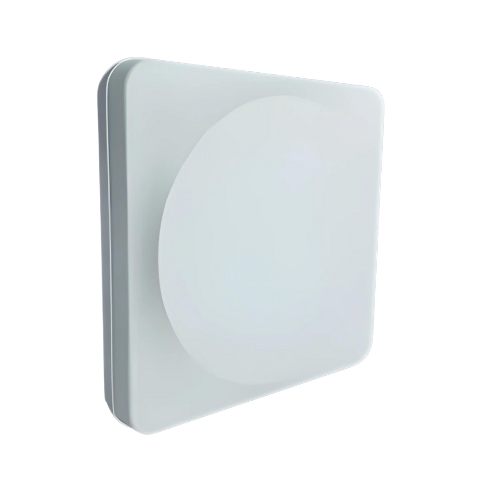

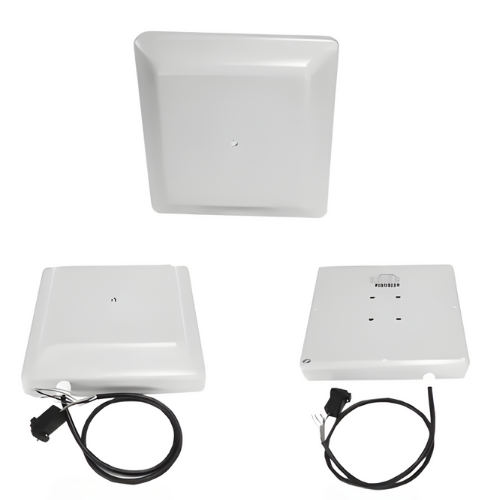

UHF RFID Desktop Reader/Writer Module, USB Interface, ISO 18000-6 B/C – Amuse Tech Solutions

Description

Overview

Amuse Tech Solutions UHF Reader UHF RFID Reader Module Desktop UHF Reader Writer USB Interface is mostly used for UHF tag identification and reading, compatible with ISO 18000-6 B or C standards, and are widely used in club management, library, student status, consumption management, attendance management, dining management, swimming pool management and other systems. Top of Form



Features

• Independent Design
• Rfid Chip Design Based Low Power Consumption
• Supports Temperature and humidity Sensor Labels
• Support Iso18000-6 B or C (Epcc1G2)
• 860 MHz to 960 MHz Frequency
• FHSS or Fixed Frequency Transmission
• Optimized Multi-Label Inventory Algorithms
• RF Output Power up to 26 dBm (Adjustable)
• Built-In 8 dBi Circularly Polarized Antenna
• Effective Distance of 26.25 ft (8 m)
• The Number of Tags Read Is Greater than 50
• + 12 V DC Power Supply
• Support Rs 232 and Rs 485
• Support Epc, Tid and User Area Reading
• Support Automatic, Interactive Trigger Work Modes
• Dynamic Link Library Demo Software Source



Technical Specifications

Frequency	860 MHz to 960 MHz
Power Supply	9 V to 12 V 150 mA
Read Interval	< 0.5 s
Interface	WG26 or WG 34 or WG 98, RS 232 or RS 485, RJ45, USB, TCP
Read Time	< 200 ms
Reading Distance	0 ft to 26.25 ft (0 m to 8 m)
Size	(227 mm × 227 mm × 60 mm)
Weight	2.20 lb (1 kg)
