UHF RFID Card Reader with Wiegand & TCP/IP Interface, Parking, Hospitals – Amuse Tech Solutions

Compact UHF RFID reader with flexible frequency and protocol support. Includes multilingual SDK, easy integration, and low power consumption.

SKU: ATSUHF-918 Category:

Description

Features

  • Built-in UHF RFID reader
  • Based on independent intellectual property rights
  • Small
  • Light in weight
  • Industrial control joint easy to implement
  • Tag buffer size up to 800 pcs
  • Offers excellent UHF read or write
  • Supplies with multilingual SDK
  • Easy integration



Technical Specifications

Frequency 865 MHz to 868 MHz or 902 MHz to 928 MHz
Protocol EPC class1 Gen2 or ISO18000-6c
Type UHF RFID Reader
Card Type UHF Day
Interface Serial Port
Reading Distance > 32.8 ft (10 m)
Application Parking, Hospital, Library, Company, Bank, Store
Application Software Platform API (c++, c#) development kit (can be customized)
GPIO 1 relay output, 1 trigger input
Power Supply 220 V AC input, + 12 V or 2 A adapter DC output
Integrated Antenna 12 dBi linear polarization
SDK C#, C++, Delphi, VB, Java
Communication Standard: RS232, RJ45, Wiegand; optional: 4G or WiFi Bluetooth or USB
Achievement 30 dBm (adjustable in 1 dBm increments with the FDY demo software
Shell Material ABS + PC
Specification 23.6 in x 23.6 in x 19.6 in (60 cm x 60 cm x 50 cm)
Front Antenna Housing Color Grey
Rear Antenna Aluminum Die Casting

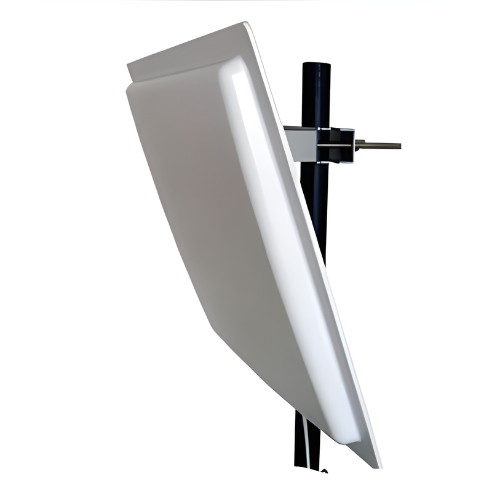

Installation Holding Tree
Radio Frequency Independent R&D technology for the financial year
Read or Write Area Reading range 32.8 ft to 82.0 ft (10 m to 25 m), writing range > 29.5 ft (9 m)
Group Read Rate 1 pc EPC Tag
Serial Rate 9600 bps to 115200 bps
Price RJ45 10 Mbps
GPIO 1 relay output, 1 trigger input
Reading The Ad Buzzer
Electricity Consumption 1 W
Power Supply 220 V AC input, +12 V or 2 A adapter DC output
Application Windows-based API development kit and application routine
SDK C#, C++, Delphi, VB, Java
Protection Level IEC IP65
Light Protection Direct current
Standard Bracket, power supply
Humidity 5 % to 95 % Relative Humidity, non-condensing
Operating Temperature -13 °F to 158 °F (﹣25 °C to﹢70 °C)
Storage Temperature -22 °F to 176 °F (﹣30 °C to﹢80 °C)
Size 17.5 in X 17.5 in X 1.5 in (445 mm × 445 mm X 40 mm)
Weight 12.1 lb (5.5 kg)
