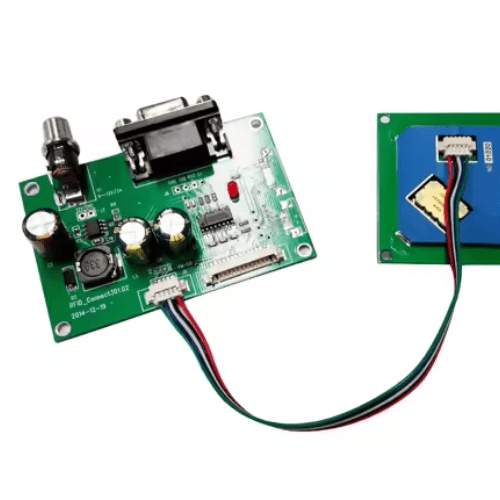

UHF RFID Card Reader, 840-960 MHz Frequency, 18-26 dBm, RS 232 – Amuse Tech Solutions
UHF RFID card reader features a 840 MHz to 960 MHz frequency range, TTL UART and RS 232 interfaces, and adjustable output power. Ideal for access control and tag management.
Description
Overview
840 MHz to 960 MHz Wide Frequency Range. TTL UART Interface and RS 232. 18 dBm to 26 dBm Output Power. DC 3.5 V to 5 V Working Voltage.
Features
- Wide Frequency Range
- Communication Interface
- Output Power
- Compact Design
- Air Cooling Heat-Dissipating Method
- Read or Write Capability
- Access Control Systems
Technical Specifications
| Wide Frequency Range | 840 MHz to 960 MHz |
| Read or Write Capability | 78.74 in X 98.43 in (200 cm X 250 cm) |
| Receive Sensitivity | < -70 dBm |
| Store Tag Peak Speed | > 50 pieces per second |
| Tags Storage Capacity | 200 pcs tags at 96 bit EPC |
| Protocol | ISO 18000-6 C |
| Temperature | 4 °F to 158 °F (- 20 °C to 70 °C) |
| Dimension | 1.96 in X 1.96 in (50 mm X 50 mm) |
| Weight | 17.63 oz (500 g) |
