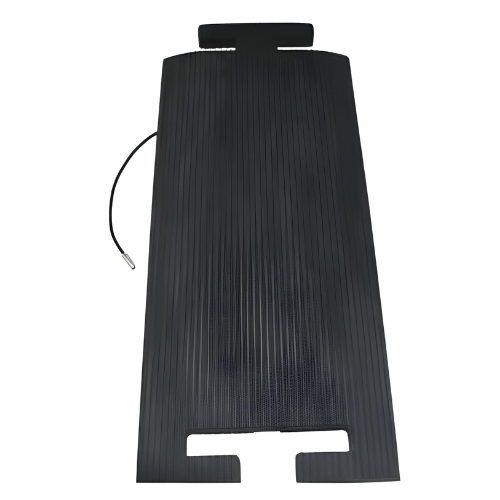

UHF RFID 9 dBi Mat Antenna, Circular Polarization, Race Timing Systems – Amuse Tech Solutions
Experience superior RFID performance with 9 dBi mat antenna. Designed for race timing systems, it features a robust 100W power rating, and wide beam widths.
Description
Technical Specifications
| Gain | 9 dBi |
| Frequency | 902-928MHz |
| Protocol | ISO 18000-6C |
| Polarization | Circular |
| Beam Width | Hor:80° Ver:40° |
| VSWR | ≤1.5 |
| Maximum Power | 100 W |
| Connector | SMA-Female |
| F/B Ratio | ≥20 |
| Impedance | 50Ω |
| Lightning Protection | DC Ground |
| Dimension | 47.24 in X 19.68 in X 1.57 in (1200 mm X 500 mm X 40 mm |
| Weight | 8.37 lb (3.7 kg) |
| Operating Temperature | -4 F To 140 F (-20℃ To 60 ℃) |
