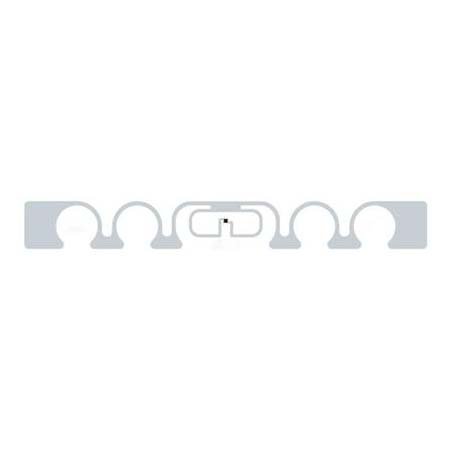

UHF EPC Gen2 RFID Tag with 12 m Read Range for Metal and Liquid Environments – Amuse Tech Solutions
UHF EPC Gen2 RFID tag with Monza4 chip, suitable for challenging materials like metal and liquids. Provides a read range of up to 12m and enhanced privacy security.
Description
Overview
This UHF EPC Gen2 RFID tag, which can be used close to metal, liquids and other RF unfriendly materials, is widely used for supply chain applications, reusable container tracking, retail inventory management, pallet tracking, inventory control and general asset tracking. This cost effective tag is equipped with Impinj’s Monza4 tag chip and has a long read distance of up to 12 m. It provides consistent performance on various materials and is compatible with the Impinj QT™ technology to enhance privacy security.
Key Features
- High performance, incorporates Monza™ 4 ICs from Impinj
- Read range up to 12 m
- EPC memory capacity from 128 bits to 496 bits
- User memory from 36 bit to 512 bits
- QT™ technology
Technical Specifications
| Operating Frequency | 860 MHz to 960 MHz |
| Standard | EPC Class 1 Gen2, ISO 18000-6C |
| EPC Memory Size | Up to 496 bits |
| User Memory Size | Up to 512 bits |
| IC | Impinj Monza 4 |
| Antenna Size | 93 mm x 11 mm / 3.66 in. x 0.43 in. |
| Die-cut Size | 97 mm x 15 mm / 3.82 in. x 0.59 in. |
| Operating Temperature | -40 °C to 85 °C / -40 °F to 185 °F |
| Bending Diameter | > 50 mm tension max. 10 N |
| Static Pressure | < 10 MPa |
| Delivery Format | Wet inlay, dry inlay, paper tag |
