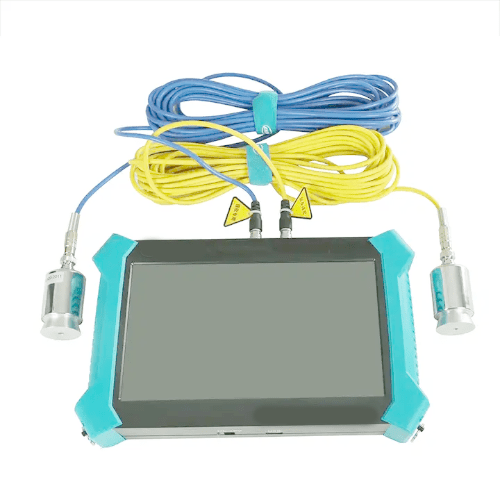

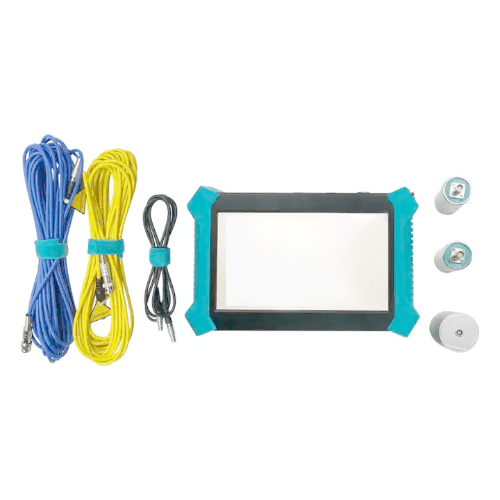

U-Disk Tester for Concrete Strength & Defect Detection with 10.1 in Touchscreen – Amuse Tech Solutions

Description

Overview

U-Disk Tester for Concrete Strength & Defect Detection with 10.1 in Touchscreen supports non-metallic ultrasonic structural concrete compressive strength, crack depth, crack width and defect detection, ultrasonic transmission method for detecting pile and continuous wall integrity. It integrates five functions of pile testing, ultrasonic rebound comprehensive method for strength measurement, defect measurement, crack sounding and width measurement, geological exploration, rock integrity, weathering evaluation test, mechanical properties of non-metallic materials such as rock mass and concrete.

Features

• Five functions of measuring pile, strength, defect, sounding depth and width measuring
• Semi-transparent, high-brightness, TFT color LCD screen
• Full touch screen operation, simple and convenient, stable and reliable
• Large memory capacity and working time over 10 hrs
• It can relate to the probe of digital display rebound instrument to measure the strength of ultrasonic rebound
• U-disk transfers data and supports software upgrading through U-disk
• Special analysis software.



Technical Specifications

Display	10.1 in (3.93 cm), high brightness, TFT color LCD
Storage Mode	Built-in Electronic Hard Disk (8 GB) + Large Capacity U Disk
Channel Number	1 transmit + 1 receive
Sampling Period	0.05 μs to 409.6 μs Multistage Options
Acoustic Time Accuracy	0.05 μs
Acoustic Time Range	+ 1677700 μs
Dynamic Range	146 dB
Bandwidth	1 kHz to 500 kHz
Emission Voltage	65 V, 250 V, 500 V and 1000 V gears adjustable
Communication	UBS, Bluetooth, WIFI
Working Hrs	More than 8 hrs
Power Supply Mode	Built-in lithium battery External 220 V to 16 V AC or CD
Working Environment	Temperature: 14° F to 104° F (-10° C to 40° C) Humidity (RH) <90%
Host Size	11.81 in x 7.87 in x 2.16 in (300 mm x 200 mm x 55 mm)
