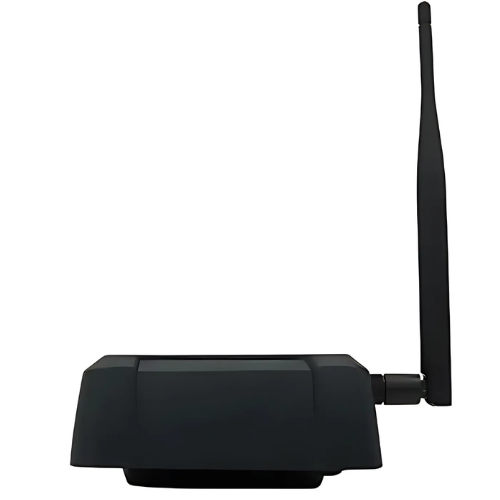

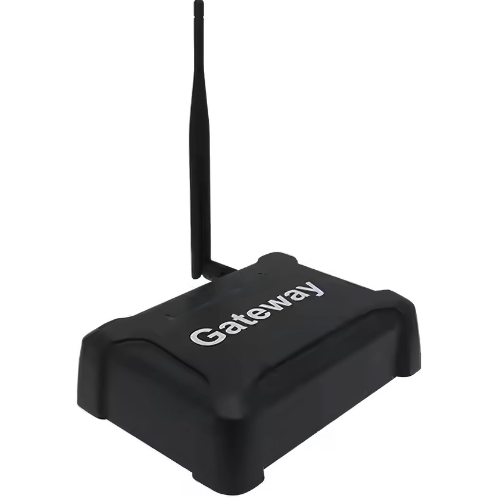

Tri-Band Multi-Channel LoRaWAN Gateway for High-Speed IoT Deployments – Amuse Tech Solutions
Efficiently manage high-speed IoT deployments with Amuse Tech Solutions Tri-Band Multi-channel LoRaWAN Gateway, supporting 433/868/915 MHz frequencies offering multiple features.
Description
Features
- Enabling multiple to backhaul connectivity’s
- High reliability and global scalability
- Powerful performance for faster data processing
- Support ethernet PoE power supply
- Easy installation
- Wide application
Technical Specifications
| Processor | MT7628, DDR2 RAM 128 MB |
| Connectivity | Wi-Fi, LTE, Ethernet |
| LoRaWAN Version | V1.0.3, Class A/C |
| Chipset | Semtech SX1302 + 2 x SX1250 |
| Channels | 8 |
| RX Sensitivity | -139 dBm at 125 KHz/SF12 |
| TX Power | 27 dBm (max) |
| Frequency | 433 MHz to 915 MHz |
| Wi-Fi Frequency | 2.4 GHz (802.11 b/g/n) |
| TX Power (Wi-Fi) | 20 dBm (max) |
| Operation Channels (Wi-Fi) | 2.4 GHz: 1 to 13 |
| LTE Network Connection | Quectel EC25-E/EC25-AFXD/EC200M |
| Supported Platforms | TTN, AWS, ChirpStack |
| Power | 12 V DC |
| POE Backup | IEEE 802.3 af, 40 V to 57 V DC |
| Ethernet | RJ45 (10 M/100 M) |
| Weight | 12.35 oz (350 g) |
| Dimensions | 6.65 in x 4.72 in x 1.77 in (16.9 cm x 12 cm x 4.5 cm) |
