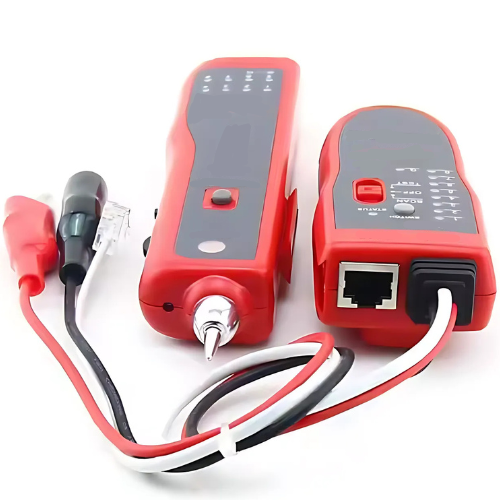

Tone Generator and Probe NF 806 with Durability – Amuse Tech Solutions
It is a versatile tool designed for professionals in telecommunications, electrical, and networking fields. It is used for locating and tracing wires, cables.
Description
Features
- Durability
- Compatibility
- Application
- High sensitivity
- Adjustable tone frequency
Technical Specifications
| Material | ABS + Electric Parts |
| Tracing Type | UTP/STP RJ45/ RJ11 / Metal Cable |
| Testing Type | Shield and Unshield RJ45 (8P8C) |
| Tone Frequency | 1000 Hz |
| Maximum Distance of Transmission | Up to 1.24 miles (2 km) |
| Maximum Working Current | Less than 10 mA (transmitter) Less than 30 mA (receiver) |
| Volume Regulate Function | Audio Volume Level Control |
| Tone Mode | 2 Tones, Adjustable |
| Compatible Connectors | RJ45, Cable Clip with RJ11 Connector |
| Maximum Signal Voltage | 8 Vp – p |
| Battery Type | DC 9.0 V x 1 pc |
| Dimensions | 5.91 in x 1.46 in x 0.79 in (15 x 3.7 x 2 cm) (transmitter), 4.80 in x 1.77 in x 0.91 in (12.2 x 4.5 x 2.3cm) Receiver |
