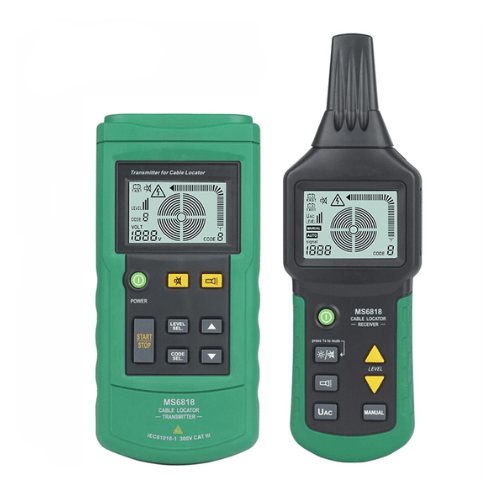

Telephone Ethernet LAN Wire Tracker with Backlight – Amuse Tech Solutions
Durable wire tracker for detecting breaks, shorts, and fuses in cables within walls or earth; includes backlight and work light for convenience.
Description
Features
- Find the Breaks or Shorts in Cable in the wall or Earth
- Track Cables in the wall or on Earth
- Find the Fuse and Safeguard
- Track a Metal Conduit in the Project of ware or hot
- Sensitivity of the transmitter or receiver can be selected
- Auto Ranging, Auto Power Off, Backlight and Work light
Â
Technical Specifications
| Output Signal Transmitter | 15 kHz |
| External Voltage Transmitter | DC 12400 V AC 12400 V (50 to 60Hz) ±2.5% |
| Fuse Transmitter | F 0.5 A 1000 V |
| MIN Current Transmitter | About 31 mA |
| MAX Current Transmitter | About 115 mA |
| Altitude Transmitter | 6561.68 ft. (<2000m) |
| Power Supply Transmitter | 1 9 V 6F22 Battery |
| MIN Current Receiver | About 32 mA |
| MAX Current Receiver | About 89 mA |
| Altitude Receiver | 6561.68 ft. (<2000m) |
| Power Supply Receiver | 6 x 1.5V AAA Battery |
| Work Temperature | 32 °F to 10 4°F (0 °C to 40 °C) |
| Storage Temperature | 28.4 °F to 140 °F (-2 °C to 60 °C) |
