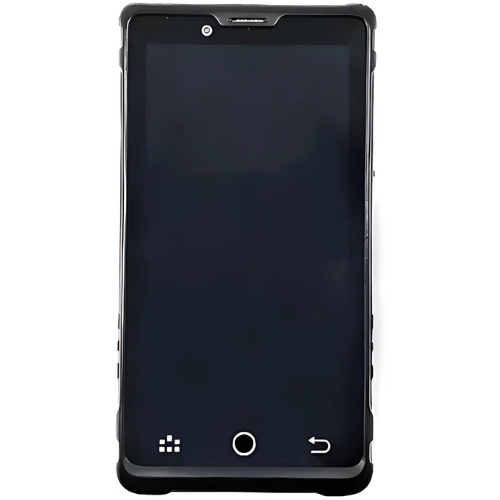

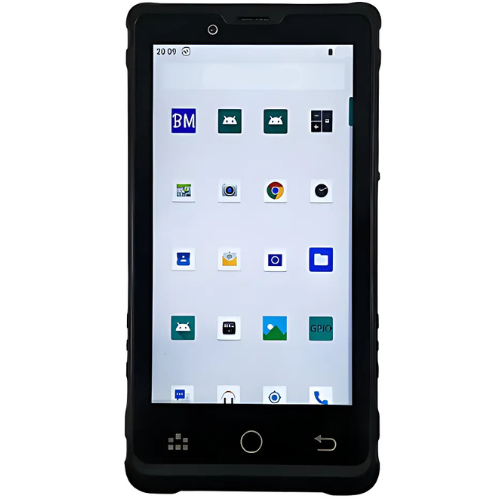

Telecom Tester with MicroSD Cards for Ample Storage – Amuse Tech Solutions
Rugged device with powerful processor, dual-band Wi-Fi, camera, GPS, battery, and expandable storage. Ideal for fieldwork and data collection.
Description
Features
- IP65 rated for dust and water resistance
- Equipped with a quad-core processor
- Supports dual-band Wi-Fi
- 13MP rear camera and a 2MP front camera
- GPS, Beidou, and Glonass for accurate location
- 6000mAh battery with fast charging support
- Offers a 5.0-inch 1080p IPS touchscreen
- MicroSD cards for ample storage
Technical Specifications
| Adapters | FC, ST, SC |
| GPS | A GPS, Beidou, GLONESS |
| IPTV Testing Metrics | Source MAC, Dst MAC, Tos TTL, Source IP, Source Port, Dest Port, RTP type |
| Applicable Fiber | SM / MM |
| Battery | 6000 mAh Li battery, Rechargeable 3.8 V, QC 3.0 and Type C support |
| WiFi | IEEE 802.11 a/b/g/n/ac (2.4 G and 5 G) |
| 4G Bands | CDMA 1 X /EVDO BC0, GSM 850/900/1800/1900, WCDMA B 1/B 2/B 5/B 8, TD-SCDMA B3 4/B3 9, FDD-LTE B 1/B 2/B 3/B 4/B 5/B 7/B 8, TD-LTE B 38/B 39/B 40/B 41 |
| Camera | 13 MP (rear) / 2 MP (front), auto focus and flash support |
| Protection Grade | IP 65 |
| VFL (Visual Fault Locator) | Wavelength: 650 nm ± 20 nm, Output power: 5 mW / 10 mW, Connector: 0.1 in (0.25 cm) universal (SC, FC, ST) |
| OPM (Optical Power Meter) | Wavelength Range: 800 nm to 1700 nm, Power Test Range: -70 dBm to +10 dBm or -50 dBm to + 26 dBm, Error Range: ± 5 % |
| IP Transmission Quality | IP Jitter, MDI DF (RFC 4445), MDI MLR (Media Package Loss), Losted Total (RTP packet loss total) |
| Data Statistics | Lost num (RTP packet loss in sampling period), IPTV service packages transfer rate, MLR 15 statistics (15 min loss value) |
| Power Supply | QC 3.0, Type C |
| Communication Network | 4 G/3 G |
| LCD | 5.0 in (12.7 cm) vertical screen, 1920 x 1080 IPS, true color touch screen |
| Operation System | Built in Android 9.0 |
| System | Qualcomm Snapdragon 450 CPU, 1.8 GHz 4 core; RAM: 2 GB; ROM: 16 GB (expandable to 256 GB via Micro SD) |
