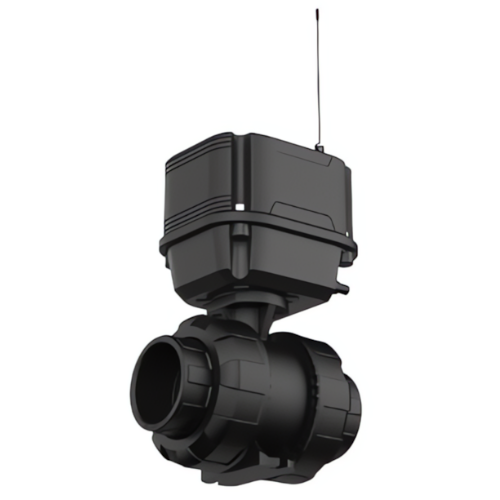

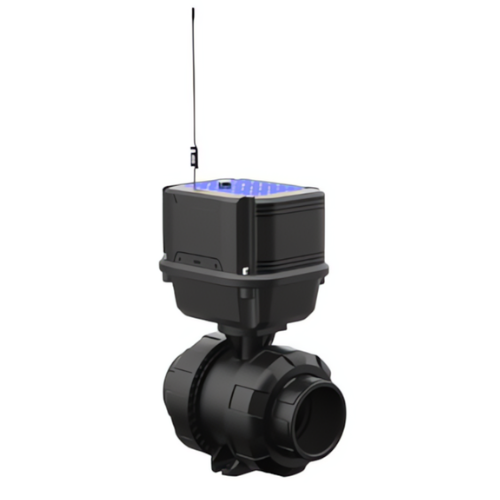

Solar Powered Smart Valve NB-IoT for Agricultural Irrigation – Amuse Tech Solutions
Solar-powered smart valve with NB-IoT and LoRa for remote irrigation control. Ideal for efficient water management in agriculture and farming.
Description
Technical Specifications
| Applicable Industries | Farms |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Core Components | Engine |
| Key Selling Points | Solar power |
| Usage | Agriculture |
| Type | Irrigation system |
| Material | Plastic |
| Application | Agriculture garden farm irrigation |
| Battery | 18650 lithium battery (wide temperature), battery capacity: 2000 mAh 3.7 V, four pcs |
| Solar Panel | Polysilicon 6 V, 5 W |
| Solar Panel Port | Stable voltage and current device inside, can connect 5 V to 30 V DC power |
| Flowmeter (external) | Max flow rate: 10 m/s |
| Min flow rate: 0.3 m/s | |
| Working pressure: 5 kg/cm2 | |
| Valve Torque | ≤60 N.m |
| Max Power | 3.8 W at communication (max. power at full emission) |
| 25 W at locked motor (overcurrent protection inside device) | |
| Advantage | One valve control, two water flow |
| Control Mode | 4G or LoRaWAN |
| Global frequency | LTE FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66 |
| Valve open adjustment | Ratio adjustment |
| Remote upgrade | OTA |
| Power Supply | Solar energy + Lithium battery |
| Protection grade | IP67 |
| Valve Diameter | DN32 to DN50 |
| Flow meter | Ultrasonic flow meter (optional) |
| Media Temperature | 32 °F to 158 °F (0 °C to 70 °C) |
| Working temperature | -4 °F to 158 °F (-20 °C to 70 °C) |
| Diameter | 31.49 in (80 cm) |
| Solar Panel Size | 7.67 in × 7.67 in (19.5 cm × 19.5 cm) |
| Weight | 17.63 lb(8 kg) |
