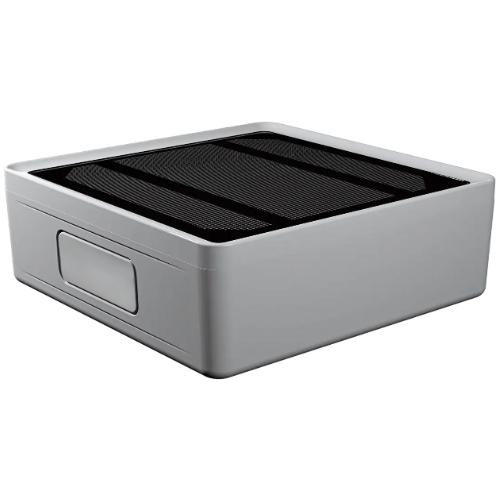

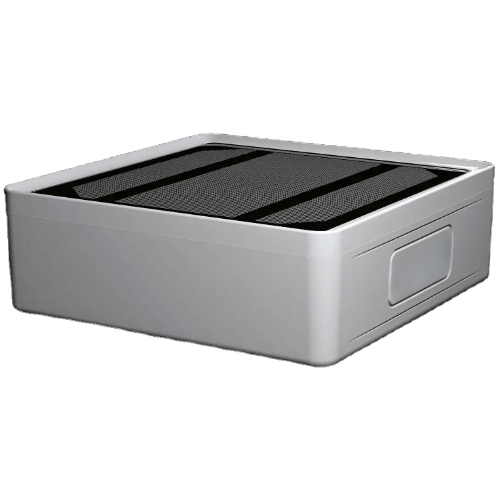

Solar Powered BLE Gateway For Parking and Tracking – Amuse Tech Solutions
Explore a solar-powered BLE gateway designed for parking lot management and vehicle tracking with efficient low-energy performance.
Description
Technical Specifications
| Application | Positioning and Navigation |
| Type | BLE Module |
| Function | IOT System |
| Bluetooth Protocol | Bluetooth 5.0 |
| LoRaWAN Protocol | LoRaWAN 1.0B |
| LoRaWAN Band | US915, AU915, EU868, EU433, AS920-923, AS923-925, RU864, ID920, KR920, IN865, KZ865, CLA, CN470, CN470-Ali |
| LoRa Maximum RF Power | 20dBm |
| LoRa Sensitivity | -139dBm at SF12, BW125kHz, 434MHz / 470MHz -137dBm at SF12, BW125kHz, 868MHz / 915MHz |
| Access Quantity | > 500 in one LoRa gateway |
| Data Rate (bps) | 300 to 30K |
| Beacon Access Quantity | 100 beacon messages can be received within 1s, maximum of 15 beacon messages at one single LoRa communication |
| Certification | CE, FCC, RCM, BQB |
| Peak Current | Max. 140mA in transmit mode |
| Ingress Protection | IP66 |
| Positioning Precision | (3 m) 9.84 ft |
| Encryption | AES128, X509 |
| Standby Time | 2552 days |
| Bluetooth Receiving Windows | 3 seconds |
| Positioning Interval | 5 minutes (300s) |
| Average Data Size | Around 12 beacons (5.5 bytes per beacon), 800ms beacon advertise interval |
| Battery | 5,300 mAh |
| Battery Life | Adjustable Position Report Interval: 5s x n (1 to 65536) Heartbeat Report Interval: 30s x n (1 to 65536) |
| Max. Beacons Supported | 105, maximum of 15 beacon messages at one single LoRa communication |
| Operating Temperature | -40 °F to 185 °F (-40 °C to 85 °C) |
| Dimension | 6.30 in x 6.30 in x 2.17 in (16 cm x 16 cm x 5.5 cm) |
| Weight | 5.29 oz (150 g) |
