Smart Zigbee Thermostats with Radiator Valve Control – Amuse Tech Solutions

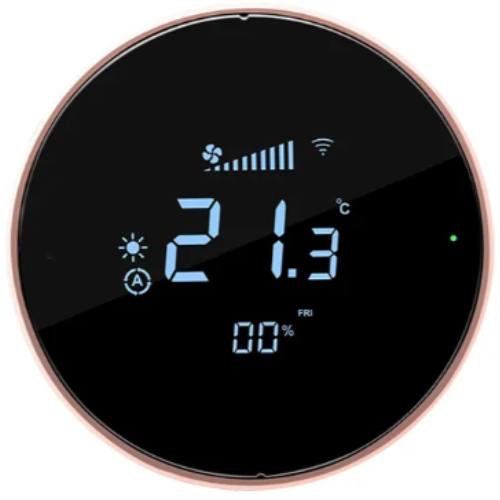

The Boundary Round Ring thermostat provides WiFi control, wall mounting, and precise temperature adjustment for smart home radiators.
Description
Features

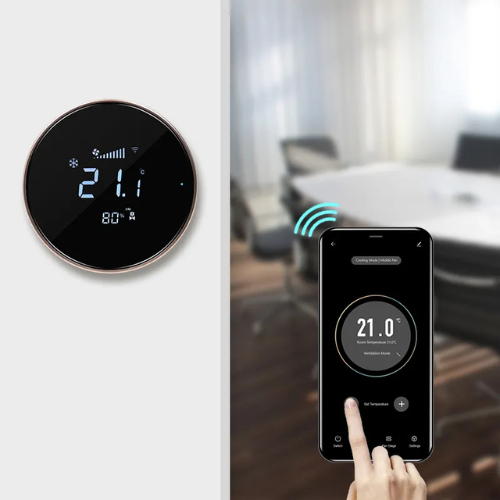

- Tuya App remote control
- Voice control
- keycard switch
- Programmable 7 Days 4 Periods
- Humidity Display
- Modbus Dual Communication
- WIFI and child lock
Technical Specifications
| Output Switch Contact | Terminal 5 or 6 2 x normally open contacts, 250V load max. 3A(heating & cooling via 2 point control) |
| Output Voltage | Terminal 16 or 17 2 x 0 to 10V for heating and cooling 2 x 0 to 10V for heating and cooling |
| Network Technology | RS485 Modbus, RTU, half-duplex, baud rate 4.800, 9.600, 19.200 or 38.400, parity: non(2 stop bits), even or odd(1 stop bit); WIFI 2.4G WIFI communication |
| Power Supply | 24 DC or AC 50 or 60Hz |
| Power Consumption | Max 3w |
| Max Load Current | <3A |
| Control Functions | Set point adjustment{33.8 to 122} (+1 to 50℃), [default 60.8 to 86](default +16 to 30℃) |
| Display | LCD Φ49mm, black background white lighting |
| Enclosure | Power unit: Fireproof PC+ABS Display unit: Aluminium alloy + High strength 3D curved tempered glass |
| Protection | IP20 according to EN60529 |
| Cable Entry | Rear entry |
| Connection Electrical | Terminal block max. 0.059 in (1.5㎟) |
| Ambient Condition | 14 to 122°F (-10 to +50℃), max. 95% rH non-condensing |
| Dimension (L*W*H) | 3.38in x 3.38 in x 2.4 in (86 mm x 86 mm x 61 mm) |
| Measuring Range Temperature | 33.8 °F to 122 °F |
| Accuracy Temperature | -457.87°F |
