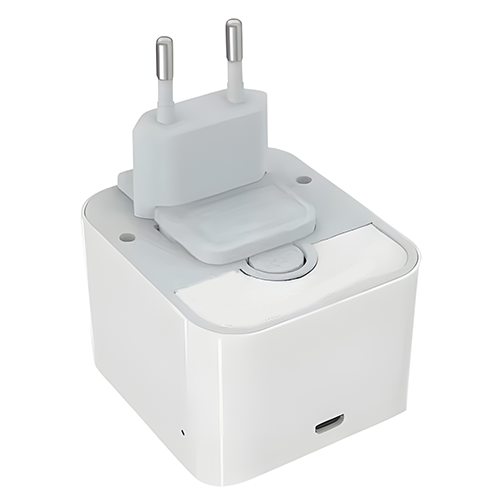

Smart ZigBee Secure Control Gateway with 100V & 8GB Storage – Amuse Tech Solutions
Secure Control ZigBee Smart Gateway 5V is powered by high-performance ARM Cortex-M3 CPU, handling complex calculations and ensuring fast processing.
Description
Features
- ZigBee HA1.2 compliant
- ZigBee SEP1.1 compliant
- Smart meter interoperability (SE)
- ZigBee coordinator of the home area network
- Powerful CPU for complicated calculation
- Mass storage capacity for historic data
- Cloud server interoperability
- Firmware upgradable via micro USB port
- Affiliate mobile apps
Technical Specifications
| CPU | ARM cortex M3 |
| Flash Rom | 2M |
| Data Interface | Micro USB port |
| Data Storage Capacity | 8G TF card |
| Power Supply | AC 100V to 240V, 50Hz or 60Hz |
| Rated Power Consumption | 1W |
| Internal PCB Antenna Range | Outdoor: 328.08 ft. (100 m) Indoor: 98.43 ft. (30 m) |
| Wireless Connectivity | ZigBee 2.4GHz Wi-Fi IEEE 802.15.4 |
| Operating Frequency | 2.4GHz |
| IP Addressing | DHCP, static IP |
| Data Porting | TCP and IP, TCP, UDP |
| Security Modes | WEP, WPA or WPA2 |
| ZigBee Profile | Home automation profile (optional) Smart energy profile (optional) |
| Downlink Commands | Data format: JSON Gateway operation command HAN control command |
| Uplink Messages
|
Data format: JSON Home area network information Smart meter data |
| Security | Authentication Password protection on mobile apps Server or gateway interface authentication ZigBee Security Preconfigured link key Certicom implicit certificate authentication Certificate based key exchange (CBKE) Elliptic curve cryptography (ECC) |
| Mounting Type | Direct plug-in |
| Plug Type | US, EU, UK, AU |
| LEDs | Power, ZigBee |
| Material | PC |
| Size | 2.60 Inch x 2.20 Inch x 1.42 Inch (66 mm x 56 mm x 36 mm) |
| Weight | 3.64 ounces (0.103 kg) |
