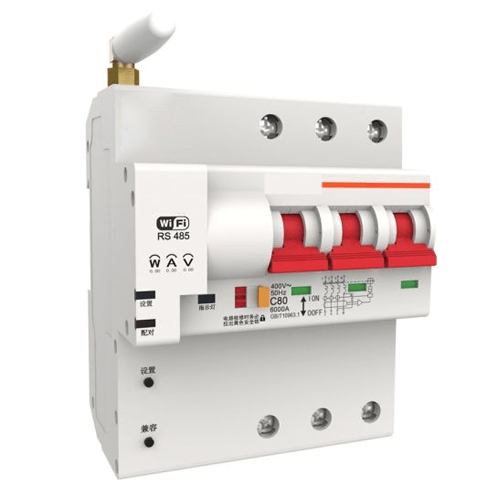

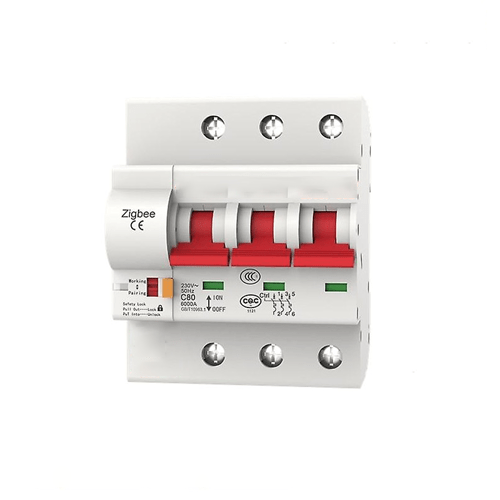

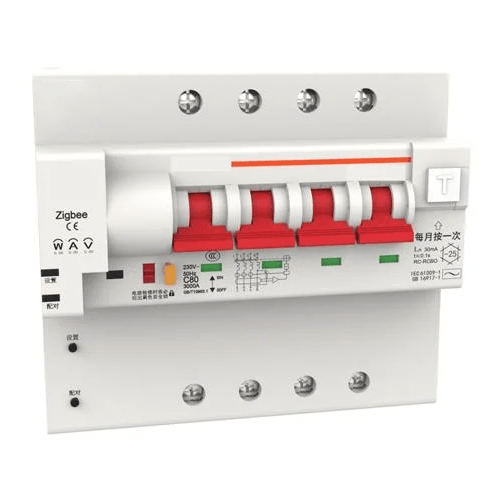

Smart Zigbee Detector 1P 4P 220 V 400 V AC 10 A 25 A with IEC60898-1 Compliance – Amuse Tech Solutions
Monitor electrical systems with the versatile ZigBee detector supporting 1P to 4P, 220V to 400V AC, 10A to 25A, and IEC60898-1 compliance.
Description
Technical Specifications
| No. of Pole | 1P, 2P, 3P, 4P |
| Rated Voltage | 220 V AC (1P/2P) / 400 V AC (3P, 4P) |
| Rated Current | 10 A to 125 A |
| Rated Frequency | 50 Hz / 60 Hz |
| Tripping Curve | C, D |
| Rated Impulse Withstand Voltage | 4 kV |
| Rated Breaking Capacity | 3 kA / 6 kA |
| Mechanical Life | ≥10000 times (≥10 years, approx.) |
| Electrical Life | ≥6000 times (≥6 years, approx.) |
| Power Consumption | ≤0.9 W |
| Ambient Temperature | -13 °F to +149 °F (-25 °C to 65 °C) |
| Comply with | IEC60898-1 |
