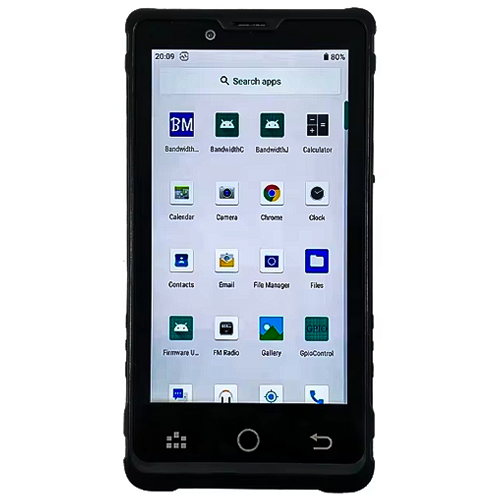

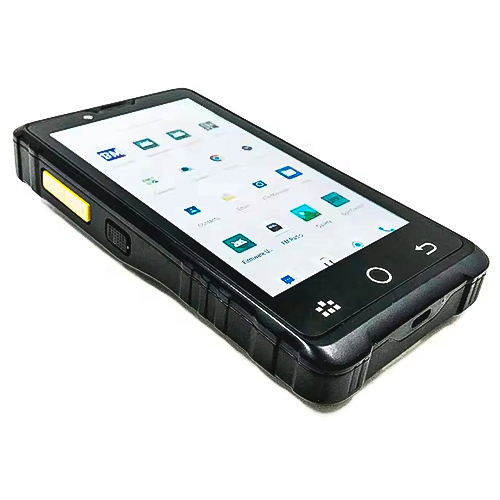

Smart Telecom Tester Cable Tracker with Fast Processor – Amuse Tech Solutions
Handheld PDA with Android OS, designed for telecom field engineers, offering asset management, enhanced efficiency, and dual management.
Description
Features
- Fast Processor
- Environmental Protection
- Large Storage
- High-Speed Support
Technical Specifications
| Working Mode | CW or 2Hz modulation |
| Applicable Fiber | SM / MM |
| Curt Rate(kbps) | Transfer rate of the IPTV service packages |
| IP Num(is) | Statistics of IP package gathered in the sampling period |
| Lostednum | Data statistics of RTP package loss number gathered in the sampling period |
| IP Jitter | Reflect levels of IP packet transmission quality |
| MDI DF | Delay in MDI test regulated by RFC4445 |
| MDI MLR | Media Package loss number in MDI test regulated by RFC4445 Source MAC: IPTV sender MAC |
| Dst Mac | STB MAC address |
| Tos TTL | IP Protocol information |
| Source IP | IPTV sender IP |
| Dst Port | STB IP |
| Source Port | IPTV sender Port |
| Dest Port | STB Port |
| Rtp Type | RTP Protocol information |
| MLR-15 | Statistical value of MLR in 15 minutes |
| Listed Total | RTP packet loss total number in test cycle |
| Rate | Current test cycle rate, including maximum, minimum and average statistics |
| Display Screen | 1920 x 1080 IPS, true color 5.5 in touch screen |
| Operation System | Built-in Android 9.0 operation system |
| System | CPU is Qualcomm Snapdragon 450,1.8 GHZ 4 Core RAM 2G bytes ROM 16G, Compatible with 2/16G, 3/32G, 4/64G Supports Micro SD card (The biggest capacity is 256G) |
| WIFI | Support IEEE 802.11 a/b/g/n/a (2.4G and 5G) |
| 4G | CDMA 1X/EVDO BC0 GSM 850/900/1800/1900 WCDMA B1/B2/B5/B8 TD-SCDMA B34/B39 FDD-LTE B1/B2/B3/B4/B5/B7/B8 TD-LTE B38/B39/B40/B41 |
| Power Supply | Rechargeable 3.8V 6000mAh, support QC3.0 and Type-C |
| Camera | 13 million pixels /2 million pixels camera and support auto focus and flash function. |
| Protection Grade | IP65 |
| GPS | A-GPS & Beidou & GLONESS |
| Wavelength Range(nm) | 800 to 1700 |
| Photo Sensing Material | InGaAs |
| Power Test Range(dBm) | -70 to +10 or –50 to +26 |
| Error Range | ±5% |
| Display Distinguishability | Linear display: 0.1%; logarithmic display: 0.01 dBm |
| Â Adapters | FC, ST, SC |
| VFL | FP-LD |
| Wavelength | 650 nm ± 20 nm |
| Output Power | 5 mw/10 mw (optional) |
| Connector | 0.098 in (0.25 cm) universal adapter (SC, FC, ST) |
