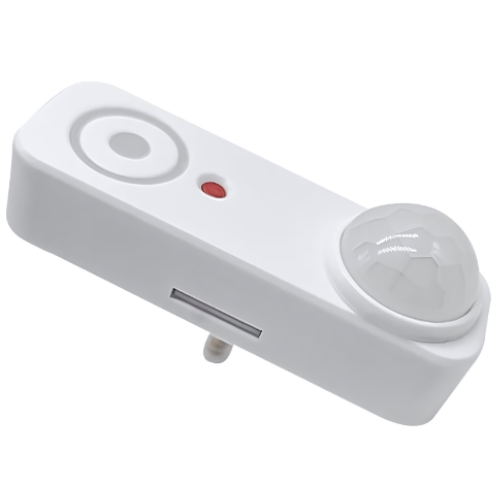

Smart Sense CCT App-Control Infrared & PIR Motion Position Sensor System Amuse Tech Solutions
The Position Sensor System offers advanced motion detection and seamless control for enhanced security and convenience.
Description
Overview
Amuse Tech Solutions Smart Sense CCT App-Control Infrared & PIR Motion Position Sensor System is composed of 12 to 24 V DC input, 0 to 10 V dimming, constant flux, Bluetooth mesh, CCT tunable white PIR motion sensor by Silver Bluetooth mesh APP control.
Features
- Dimming, task tuning (10 to 100%)

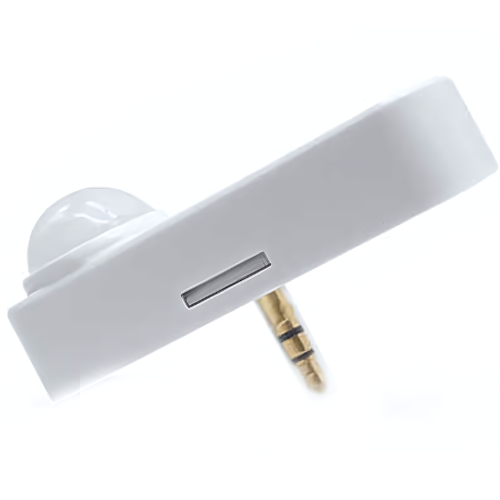

- Audio jack connection, easy plug & play
- Dual channel to achieve TUNABLE WHITE control
- 0 to 10 V channel 1(Dim+) to adjust brightness
- 0 to 10 V channel 2(CCT+) to adjust color temperature
- Super compact, ideal for office and commercial lighting
- RoHS compliant
Technical Specifications
| Output Configuration | 0 V to 10 V dimming and constant flux, CCT function |
| Sensing Range | max. 6 in diameter |
| Function | tri-level dimming and constant flux, CCT tunable, Bluetooth mesh PIR motion detection, SILVAIR Bluetooth mesh app |
| Input Voltage | 12 V DC to 24 V DC |
| Mounting Height | Â 157.47 in (400 cm) max. |
| Size or Dimension | 2.36 in x 0.83 in x 0.89 in (6 cm x 2.1 cm x 2.27 cm) |
| Operation Temperature |  14 °F to 122 °F (-10 ℃ to + 50 ℃). |
