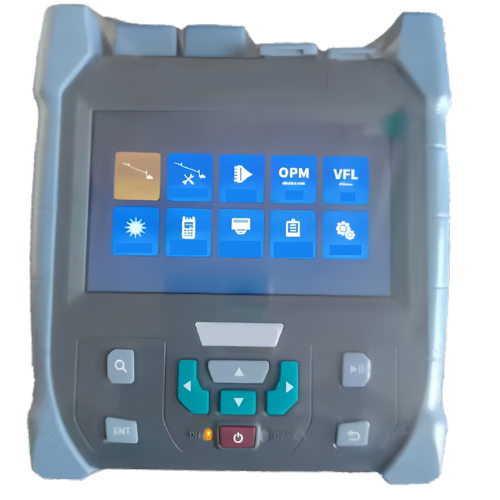

Smart Mini Fiber Optic Optical Time Domain Reflectometer – Amuse Tech Solutions
Designed for precision and portability, provides accurate measurements, making it an ideal solution for field technicians and professionals in the fiber optic industry.
Description
Technical Specifications
| Network | Wireless LAN, Bluetooth, Wired LAN, ONVIF, SDK, TCP, IP, POE, GPRS, Wi-Fi, 4G, GSM, 3G, Wiegand |
| Application | FTTTH (Fiber to the Home), FTTTB (Fiber to the Building), FTTTX (Fiber to the X) |
| Mode | SM (Single Mode), MM (Multimode) |
| Event Dead Zone | 4.92 ft (1.5 m) |
| Attenuation Dead Zone | 19.69 ft (6 m) |
| Maximum Dynamic Range | 28/26/24/22/24 dB |
| Connector | FC/UPC (Interchangeable with SC, ST) |
| Functions | OTDR, VFL (Visual Fault Locator), OPM (Optical Power Meter), LS (Light Source) |
| Test Range | 1640.42 ft (500 m), 0.62 mi (1 km), 1.24 mi (2 km), 2.49 mi (4 km), 4.97 mi (8 km), 9.94 mi (16 km), 19.88 mi (32 km), 39.77 mi (64 km), 62.14 mi (100 km) |
| Test Pulse Width | 5ns, 10ns, 20ns, 30ns, 50ns, 80ns, 160ns, 320ns, 500ns, 800ns, 1μs, 2μs, 3μs, 5μs, 8μs, 10μs, 20μs |
| Ranging Accuracy | ±2.46 ft (0.75 m) + sampling interval + 0.005% × test distance) |
| Linearity | ±0.05 dB/dB |
| Maximum Number of Sampling Points | ≥16000 |
| Maximum Sampling Resolution | ≤ 0.0984 ft (0.03m) |
| Loss Resolution | 0.01 dB |
| Loss Threshold | 0.20 dB |
| Distance Resolution | 0.0328 ft (0.01 m) |
| Refractive Index | 1.00000 to 2.00000 |
| Reflection Accuracy | ±3 dB |
| File Format | SOR Standard File Format |
| Loss Measurement Mode | 4-point method / 5-point method |
| Laser Safety Rating | Level Class II |
| Optical Connectors | FC/SC (Interchangeable, universal interface) |
| Weight | 2.65 lb.(1.2 kg) |
