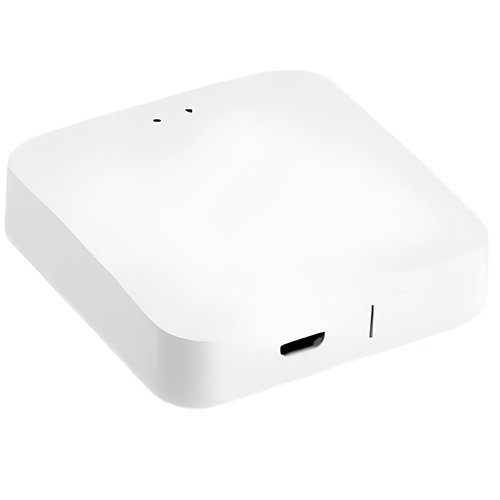

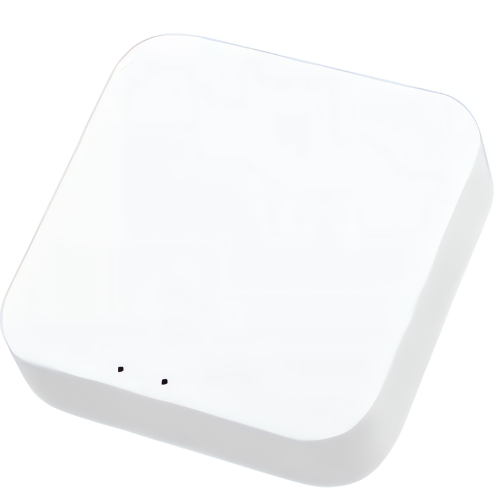

Smart Control Device Hub with One Click Setup Networking – Amuse Tech Solutions
Cloud Control Device Hub supports working voltage range of 1.8V to 3.3V and is powered via Micro USB 5V for convenient charging with 2 LED indicators.
Description
Features
- Control sub-devices
- One-click networking
- Cloud scenario or automation
- Local scene or automation
- Support security functions
Technical Specifications
| Working Voltage | 1.8V to 3.3V |
| Power Supply | Micro USB DC 5V |
| Working Current | <1A |
| Antenna Type | Built-in onboard antenna |
| Antenna Gain Information | 2.2 dBi |
| Wireless Frequency
|
WIFI: 2.400 to 2.4835GHz BLEÂ &Â Mesh: 2.400 to 2.480GHz Zigbee: 2.400 to 2.480GHz |
| Network Standard
|
WIFI 802.11 bgn, BLE5.0 and IEEE 802.15.4 |
| Transmit Power | WIFI: 11dBm BLE & Mesh: 11dBm Zigbee: 11dBM |
| Number Of Channels | WIFI: CH1-CH14 Zigbee: CH1-CH14 CH11 – CH26 Chanel 2405MHz； 2410MHz. 2415MHz; 2420MHz; 2425MH z; 2430MHz; 2435MHz ··· 2480MHz That is a channel is added every 5MHz. |
| Transmission Rate | WIFI: 11b: 1, 2, 5.5, 11 (Mbps) 11g: 6, 9, 12, 18, 24, 36, 48, 54 (Mbps) 11n: HT20 MCS0 to 7 11n: HT40 MCS0 to 7 BLEÂ &Â Mesh: 1Mbps or 2Mbps Zigbee: 250Kbps |
| Wireless Encryption | AES 128bit Encryption WPA-PSK or WPA2-PSK， WPA or WPA2 Security mechanism |
| Network Management | Remote App configuration, WIFI module firmware upgrade, Zigbee & Bluetooth module firmware upgrade |
| Maximum Number Of
Connections |
BLE & Mesh 128 Max Node Zigbee 50 Max Node |
| Hardware Interface | 1 x Micro-USB |
| Status Indicator | 2 x LED (WIFI + Zigbee or Bluetooth) |
| Operation Buttons | 1 x button (reset)
|
| Operation Environment | 14°F to 122°F (-10℃ to 50℃)
|
| Size | 2.36 inches x 2.36 inches x 0.59 inches (60 mm x 60 mm x 15 mm) |
