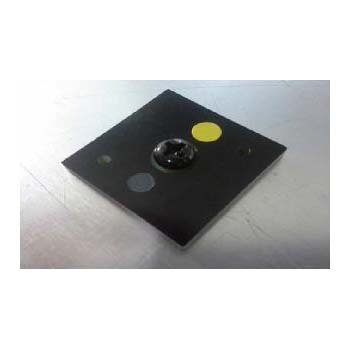

Small UHF RFID Tag, EPC Class 1 Gen 2 Protocol, Durable in Harsh Environments – Amuse Tech Solutions
This compact UHF RFID tag offers 96-bit memory, 2m read range on metal, and superior resistance to heat, pressure, and chemicals. Ideal for demanding applications.
Description
Overview
This passive UHF RFID tag is RoHS and EPC Class 1 Gen 2 protocol compliant and provides a memory capacity of 96 bits. When placed on metal applications, it provides a read distance of 2.0 m from a fixed reader and 1.0m from a handheld reader; while on non-metal applications, the read distance is 0.5 m from a fixed reader and 0.3 m from a handheld reader. It performs well in harsh environments and meets rigorous endurance requirements in terms of heat, pressure and chemical resistance.
Key Features
- Small size and light weight
- Waterproof and high temperature resistant
- Performs well even in harsh environments
- RoHS compliance
Technical Specifications
| Chip | Alien Higgs3 | ||
| Chip Memory | EPC 96 bits (Extensible to 512 bits)/User 512 bits/TID 64 bits/CRC 32 bits | ||
| Chip attachment | Aluminum wire bonding | ||
| Antenna | Gold plated etched copper | ||
| Protocol | EPC Class1 Gen2 | ||
| Read Distance | Fixed reader | Handheld reader | |
| On metal | 2 m | 1 m | |
| On non-metal | 0.5 m | 0.3 m | |
| Size W*H*D mm | 26*26 *3.1 | ||
| Material | Glass fiber – PCB FR4 | ||
| Operating Temperature | -40 °C to 85 °C | ||
| Storage Temperature | -55 °C to 180 °C | ||
| IP Classification | IP68 (tested for 24 h in 1 meter depth) | ||
| Humidity | 85 °C/85%RH tested for 168 ) | ||
| Boiling water | Tested in boiling water for 24 h | ||
| Pressure | Tested with 50 trials x 1 kg iron ball free falling on tag | ||
| Vibration | IEC60068-2-6/64 | ||
| Chemicals | Salt water (salinity 10%, 24 h)/NaOH (10%, pH13, 24 hrs)/Sulfuric acid (10%, pH2, 24 h)/Motor oil (24 h)/Methanol (24 h)/Ethanol (24 h) | ||
| Warranty | 18 months | ||
| RoHS | 100% compliant | ||
