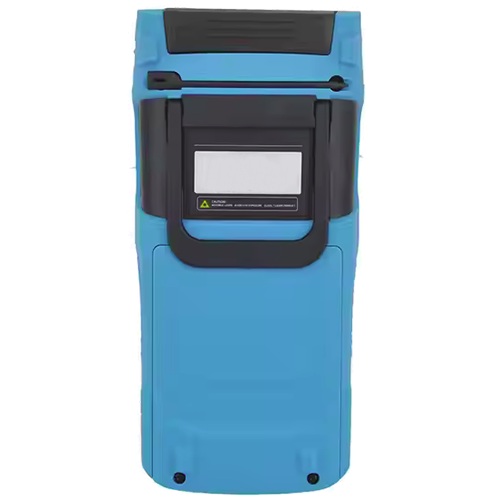

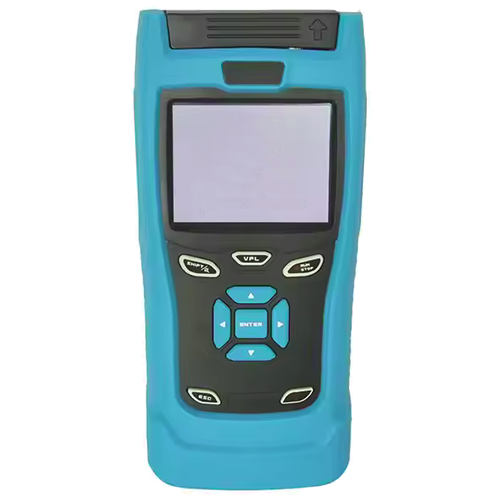

Single Mode OTDR with Accurate Fault Location for Fiber – Amuse Tech Solutions
Fiber optic OTDR tester for single-mode networks. Features accurate fault location with user-friendly operation. Ideal for network maintenance.
Description
Features
- Single-Mode Testing
- Accurate Fault Location
- User-Friendly Operation
- Fiber Network Analysis
Technical Specifications
| Use | Fiber Patch Cord Testing |
| Product Name | Optical Time Domain Reflectometer |
| Application | FTTX Systems |
| Network | None |
| Light Source Type | LD |
| Display | 3.5′ in TFT LCD touch screen |
| Optical Interface | FC/UPC (FC/SC optional, UPC/APC optional) |
| Wavelengths | 1310 nm/1550 nm |
| VFL Wavelength | 650 nm |
| VFL Output Power | 2 dBm to 3 dBm |
| VFL Test Distance | 1.8 miles (3 km) |
| Pulse Width | 5 ns to 20480 ns, Auto |
| Data Storage | >60000 test traces |
| Communication Interface | USB |
| Measurement Duration | 15 s, 30 s, 1 min, 2 min, 3 min |
| Event Blind Zone | 5.9 ft (1.8 m) |
| Attenuation Blind Zone | 32.8 ft (10 m) |
| Distance Uncertainty (ft) | ± (3.3 ft + 5 x 10^-5 x Distance + Sampling Interval) |
| RJ45 Cable length | 984.3 ft (300 m) |
