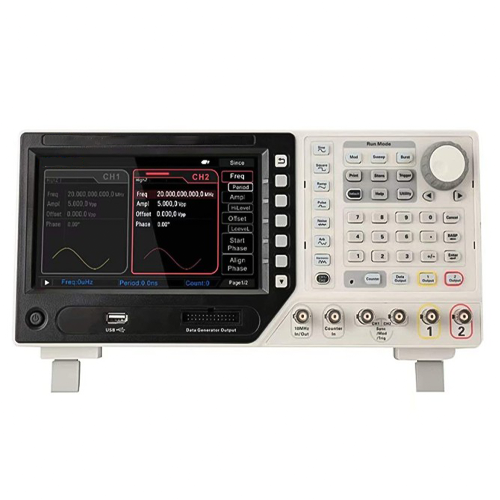

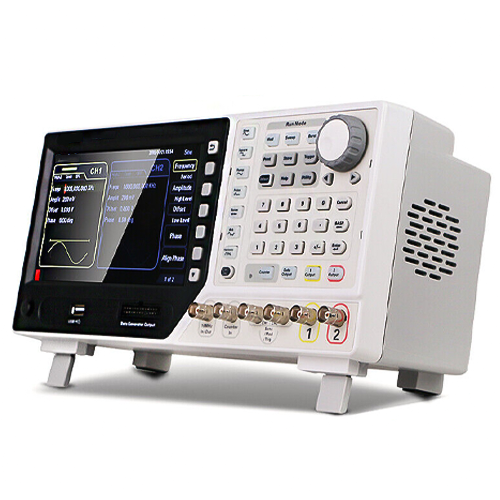

Signal Generator Dual Channel Output – Amuse Tech Solutions
Discover the Arbitrary Signal Generator, featuring advanced tone generation and dual-channel capabilities for versatile waveform applications.
Description
Features
- Dual-channel output
- High sampling rate
- Multiple waveform options
- User-friendly interface
- Compact design
Technical Specifications
| Level | TTL-compatible |
| Slope | Rise or fall (optional) |
| Pulse Width | >50 ns |
| Level | 2.5 Vpp to 5 Vpp |
| Lock Time | <2 s |
| Frequency | 10 MHz + -50 Hz |
| Gate Time | 10 m to 16 s |
| Display | 7 in, 64K color,TFT LCD screen 80 cm x 64 cm |
| Voltage | 100 V to 240 V, 45 Hz to 440 Hz |
| Cooling Method | <50 W |
| Weight | 3 kg (6.61 lbs) |
| Dimension | 12.52 in x 4.33 in x 5.91 in (31.8 cm x 11 cm x 15 cm) |
| Temperature Range | Operation 50 °F to 104 °F (10 C to 40 C) Nonoperation –4 °F to 140 °F (-20 C to 60 C) |
