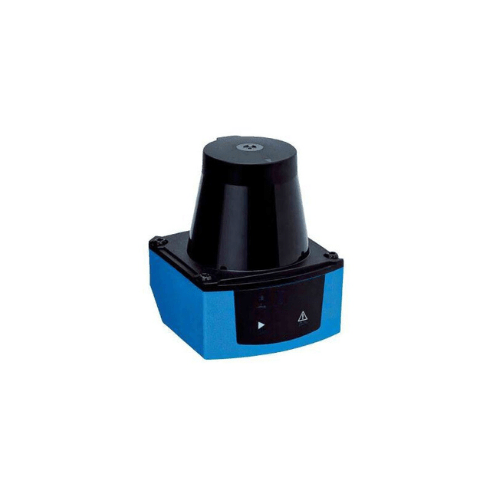

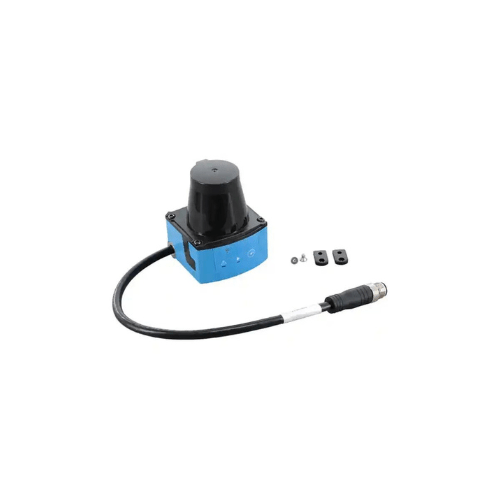

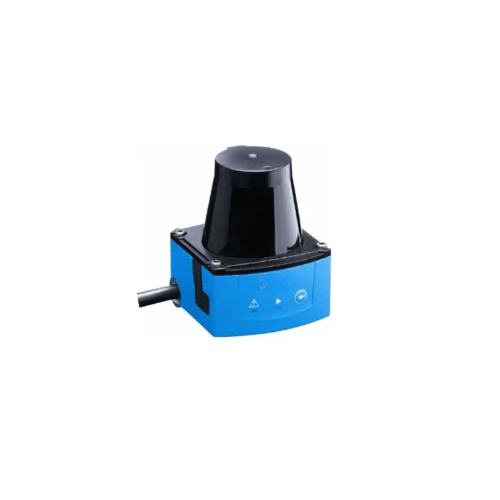

Short Range 2D LiDAR Sensor, 25m Range, 0.33° Resolution, IP67 – Amuse Tech Solutions
The Short Range 2D LiDAR Sensor features HDDM+ technology and a pulse power of up to 880 mW with a 5 ns pulse width, it ensures high performance.
Description
Technical Specifications
| Device name | Short range 2D LiDAR sensor |
| Device type | App Space |
| Performed by | 25 m measuring range, 0.33° resolution, performance professional, HDDM+ |
| Housing | IP 67 without heating, Programmable |
| Connection | 21 Rotating connection unit, 1 of M12 male connector, 12 pin, D coded (Power + I or 0); 1 of M12 female connector, 4 pin, A coded (Ethernet) |
| Application | App Space standard |
| Laser type | Pulse power up to 880 mW, pulse width up to 5 ns, pulse rate 1,500 kHz |
