SDI Fiber Converter, 4 HD-SDI Channels, 80 km Range – Amuse Tech Solutions

Description

Overview

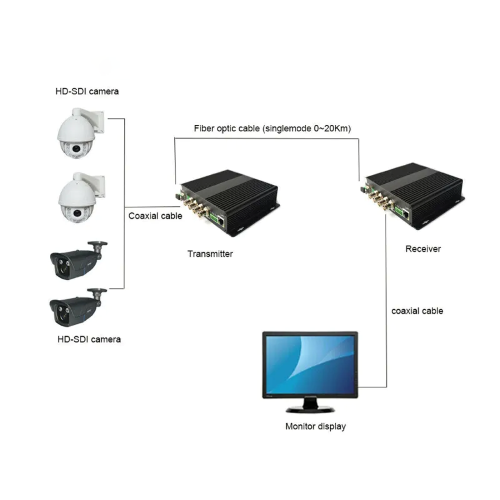

Amuse Tech Solutions SDI Fiber Converter, 4 HD-SDI Channels, 80 km Range supports 4 CH HD SDI, 1 CH forwarding RS485 and 1 CH half duplex or full duplex 10 M or 100 M ethernet transmission over 1 single mode fiber to 6.21 mi to 49.70 mi (10 Km to 80 Km). It is a perfect and economic digital product for long distance with high resolution real-time video monitoring. It’s used for broadcast on television, high-definition video conferencing, high-definition video surveillance and other fields.



Features

• 4 channel unidirectional hd-sdi video transmission over optic fiber
• Supports HD-SDI and SD-SDI standards
• Supports various video formats and data protocols
• Support Full duplex and half duplex
• 10 M or 100 M ethernet
• Automatic cable equalization to ensure signal integrity
• Long transmission capability up to 49.70 mi (80 km)
• ESD and surge protection
• Provide light disappear alarm
• Remote power-down alarm
• Signal status and input lock indications
• Wide temperature range adaptability



Technical Specifications

Video
Physical Interface	BNC
Number of Channels	4 Channel
Input or Output Impedance	75 Ω (unbalance)
Video Format	1080I 60 Hz or 50 Hz,            720 P 60 Hz or 50 Hz or 30 Hz or 25 Hz
Video Direction	Unidirectional
Standard Video Input or Output Voltage	0.8 Vp-p
Video Voltage Range	0.6 to 1.0 Vp-p
Video Encoding bit width	8 bit or 10 bits Auto
Return Loss	≤-15 dB at 5 MHz to 1.5 GHz
Embedded Audio, Auxiliary Space, EDH Data	Transparent
Optic
Fiber Interface	FC (default), SC selectable
Fiber Type	Single mode (9 μ or 125 μ single-mode optical fiber, default), Multimode Selectable
Wavelength	1310 nm, 1550 nm
Distance	6.21 mi to 49.70 mi (10 km to 80 km) default 12.42 mi (20 km)
Number of Fibers	1
Data
Data Protocol	RS485
Data Rate	0 Kbps to 115.2 Kbps
Error Rate	<10-9
