Rugged UHF RFID Handheld Barcode Scanner with Android 10, 10 m/20 m Range – Amuse Tech Solutions

Description

Overview

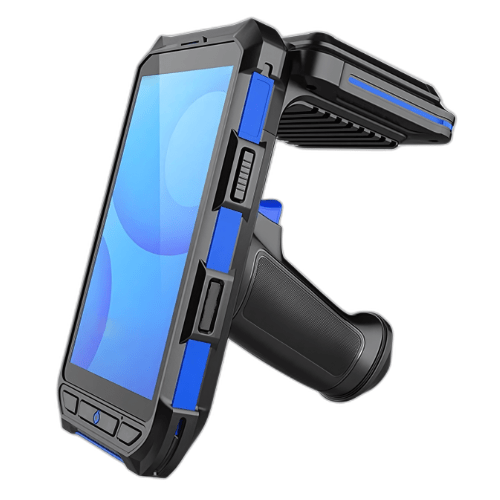

Amuse Tech Solutions Affordable UHF RFID Reader Handheld Android Barcode Scanner is an Android rugged PDA with gun grip RFID reader that delivers best-in-class UHF RFID capability. Designed with embedded Impinj E710 / R2000, it enables almost (20 m) of reading distance outdoors. The RFID PDA terminal also features optional infrared barcode scanning, Octa-Core processor and 7200 mAh big battery to perfectly withstands intensive daily tasks, especially in asset management, retails, warehousing, clothing inventory, expressway toll, fleet management, etc.



Features

• Android 10 OS with GMS
• Embedded Professional infrared Barcode Scanner
• 20m long distance with impinj RFID module
• 3+32 GB memory
• 5 in (13.97 cm) Industrial capacitive screen
• Long battery working time >12 hrs
• IP65 waterproof and dustproof
• 5MP auto focus camera with LED flash
• Excellent ergonomic Gun Grip Design



Technical Specifications

Operation System OS	Android 10 OS
CPU	2.0 GHz, MTK Octa-Core Processor
Memory	3 GB RAM or 32 GB Flash (4+64GB Optional)
Languages Support	English, Simplified Chinese, Traditional Chinese, Japanese,Spanish, German, French, Italian, Portuguese, Korean and Multiple Languages
Hardware Specification Screen Size	5.5 in (13.97 cm), TFT-LCD (720 x 1440) Touch Screen With Backlight
Touch Panel	Gorilla glass III With 5 Points Capacitive Touch Screen
Buttons Or Keypad	4 keys- Programmable Function Button; Dual Dedicated Scan Buttons; Volume Up or Down Buttons; On Or Off Button
Card Readers (Optional)	Contactless Card, Support ISO / IEC 14443 A&B, Mifare, Felica Card Conform to EMV / PBOC PAYPASS Standard
Camera	Front 5 Megapixels (Optional), Rear 13 Megapixels, With Flash And Auto Focus Function
Indicator Type	LED, Speaker, Vibrator
Battery	Rechargeable li-ion Polymer, 3.8V,7200mAh
Symbologist 1D Barcode	1D: UPC/EAN/JAN, GS1 DataBar, Code 39, Code 128, Code 32, Code 93, Codabar/NW7, Interleaved 2 of 5, Matrix 2 of 5, MSI, Trioptic
2D Barcode	2D: PDF417, MicroPDF417, Composite, RSS TLC-39, Datamatrix, QR Code, Micro QR Code, Aztec, MaxiCode, Postal Codes, U PostNet, US Planet, UK Postal, Australia Postal, Japan Postal, Dutch Postal. etc
HF RFID	Support HF/NFC Frequency 13.56 Mhz Support: ISO 14443A&15693, NFC-IP1, NFC-IP2
UHF RFID	Frequency 865 MHz to 868 MHz or 920 MHz to 925 MHz Protocol EPC C1 GEN2/ISO 18000-6C Antenna Gain Circular Antenna (4 dBi) R/W Range 65.6 ft (20 m) (Tags and Environment Dependent)
Communication Bluetooth®	Bluetooth®4.2
WLAN	Wireless LAN 802.11a/b/g/n/ac, 2.4 GHz and 5GHz Dual Frequency
WWAN	GSM: 850 MHz, 900 MHz, 1800 MHz, 1900 MHz WCDMA: 850 MHz or 1900 MHz or 2100 MHz LTE:FDD-LTE (B1/B2/B3/B4/B5/B7/B8/B12/B17/B20) TDD-LTE (B38/B39/B40/B41)
GPS	GPS/BDS/Glonass, Error Range ± 16.4 ft (5 m)
I/O Interfaces USB	USB 3.1 (Type-C) Support USB OTG, Ethernet/USB-Host Via Cradle
POGO PIN	PogoPin Bottom: Charging Via Cradle
SIM Slot	Dual Nano SIM Slot
Expansion Slot	Micro SD, Up to 256 GB
PSAM SECURITY (OPTIONAL)	Protocol: ISO 7816 Baudrate :9600, 19200, 38400, 43000, 56000, 57600, 115200 Slot :2 Slots (Maximum)
Audio	One Speaker With Smart PA (95 ±3 dB at 3.9 in 10 cm), One Receiver, Dual Noise-Cancelling Microphones
Durability Drop Specification	3.9 ft (1.2 m), 4.9 ft (1.5 m) With Boot Case, MIL-STD 810G
Sealing	IP65
Environmental Operating Temperature	-4 °F to 122 °F (-20 °C to 50 °C)
Storage Temperature	-4 °F to 158 °F (-20 °C to 70 °C) (Without Battery)
Charging Temperature	32 °F to 113 °F (0 °C to 45 °C)
Relative Humidity	5 % to 95 % (Non-Condensing)
Enclosure Dimensions	6.7 in x 3.1 in x 0.8 in (170 mm x 80 mm x 20 mm) (Without The Pistol Grip and UHF Shield)
Weight	0.84 lb (380 g) (With Battery)
