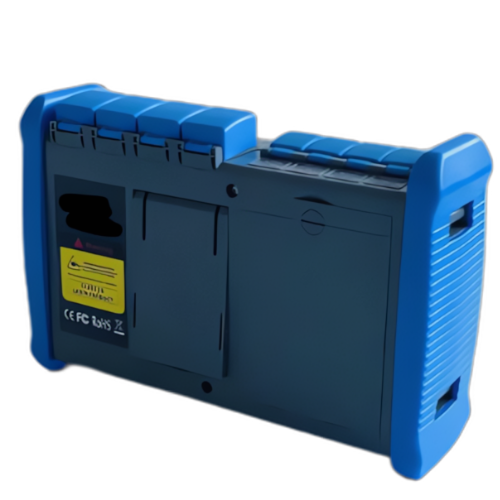

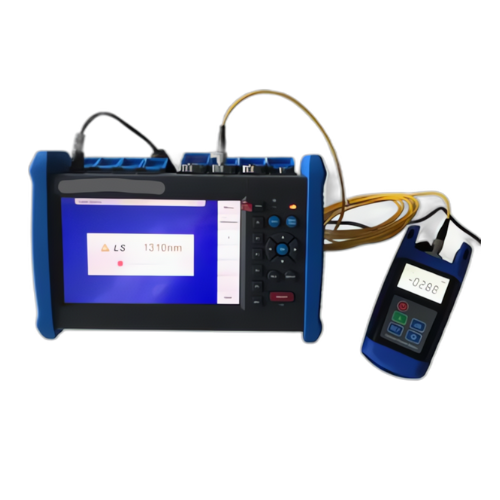

Rugged Outdoor OTDR with Advanced Fiber Link Map – Amuse Tech Solutions
Durable fiber tester for outdoor use with rugged design, anti-glare screen, remote control, multilingual support, and long working time.
Description
Features
- Rugged Outdoor Design
- Anti-Reflection LCD Screen
- Remote Control Support
- Multilingual Display Options
Technical Specifications
| Display | 7 in TFT-LCD with LED backlight (touch screen optional) |
| Interface | 1×RJ45 port, 3×USB ports (USB2.0, Type A USB×2, Type B USB×1) |
| Power Supply | 10V(dc), 100V(ac) to 240V(ac), 50 to 60Hz, 7.4V(dc)/4.4Ah lithium battery |
| Data Storage | Internal memory: 16GB (about 160,000 groups of curves) |
| Language | User selectable (English, Chinese, French, Korean, Russian, Spanish, Portuguese) |
| Fiber Event Analysis | PASS/FAIL thresholds: Reflective: 0.01 to 32dB; Fiber end: 3 to 20dB |
| Other Functions | Real-time sweep (1Hz), Live fiber detection, Trace overlay and comparison |
| Testing Modes | Automatic or manual setup |
| VFL Module | Wavelength: 650nm; Power: 10mW, Class III B, Range: 7.5 mi (12 km) |
| PM Module | Wavelength Range: 800 to 1700nm; Test Range: -65 to +5dBm (Type A), -40 to +23dBm (Type B) |
| LS Module | Wavelength: 1310/1550/1625/1650nm; Output Power: Adjustable -25 to 0dBm |
| Pulse Width | Single mode: 3ns to 20μs; Multi mode: 3ns to 2μs |
| Distance Range | Single mode: 328 ft to 149 mi (100 m to 240 km); Multi mode: 1,640 ft to 24.9 mi (500 m to 40 km) |
| Sampling Resolution | 24.9 mi (40 km) minimum 0.16 ft (5 cm) |
| Sampling Points | Maximum 128,000 points |
| Linearity | ≤0.05dB/dB |
| Distance Resolution | 0.03 ft (0.01 m) |
| Distance Accuracy | ± (3.28 ft + measuring distance × 3 × 10⁻⁵ + sampling resolution) (excluding IOR uncertainty) |
| Reflectance Accuracy | Single mode: ±2dB; Multi mode: ±4dB |
| OTDR Trace Format | Telcordia universal, SOR, issue 2 (SR-4731) |
| Fiber Event Thresholds | Reflective and non-reflective: 0.01 to 1.99dB; Reflective: 0.01 to 32dB; Fiber end: 3 to 20dB |
| Light Source | Stabilized light source (CW, 270Hz, 1kHz, 2kHz output) |
| Field Microscope Probe | Integrated |
| Operating Temperature | 14°F to 122°F (-10°C to 50°C) |
| Dimension | 9.96 in × 6.61 in × 2.9 in (25.3 cm × 16.8 cm × 7.36 cm) |
| Weight | 3.3 lb. (1.5 kg, battery included) |
