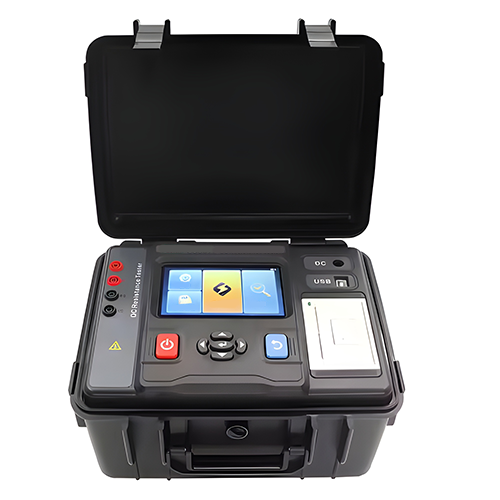

Quick Tester Four Wire with Wide Resistance Range – Amuse Tech Solutions
A versatile continuity tester with a wide resistance range, multiple current settings, and mobile app integration for cable testing and data storage.
Description
Features
- Wide Resistance Range
- Multiple Test Currents
- Mobile App Integration
- Large Data Storage
- Four-Wire Test Method
Technical Specifications
| Display Type | Digital Only |
| Accuracy Class | 0.2%FS ±10 digits |
| Test Current | 20 A, 10 A, 5 A, 1 A, 0.1 A, 10 mA, 1 mA |
| Resistance Range | 10.0 μΩ to 1000.0 KΩ |
| Sample Type | Optional Cu (Copper), Al (Aluminum), Fe (Iron), Au (Gold), Ag (Silver) |
| Touch and Color Screen | Yes |
| Printer | Yes |
| Data Storage | 800 Group |
| Detection Method | Four-wire test method |
| Power | DC 14.6 V, 12000 mAh Lithium Battery |
| Mobile App and PC | Yes, with USB cable connection |
| Working Temperature & Humidity | 14 °F to 104 °F (-10 °C to 40 °C); 70% RH |
| Dimensions | 10.92 in x 8.95 in x 6.02 in (27.72 cm x 22.75 cm x 15.3 cm) |
