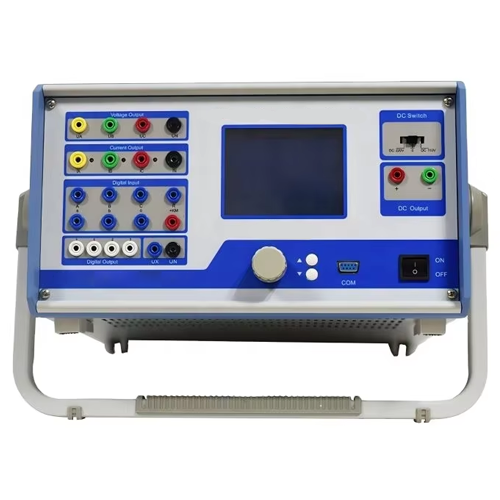

Protective Relay Tester with Independent DC Output – Amuse Tech Solutions
Multichannel testing with current and voltage injection, user-friendly interface, customizable options, durable design, and reliable performance.
Description
Features
- Voltage & Current Output
- Dual Operation Model.
- Large LCD Screen
- Independent DC Output
Technical Specifications
| Phase Current Output (Effective Value) | 0 A to 40 A |
| Three Parallel Phase Current Output (Effective Value) | 0 A to 120 A |
| Phase Current Value with Long Time under Permission (Effective Value) | 10 A |
| Phase Current Maximum Power Output | 400 VA |
| Three Parallel Phase Current Maximum Power Output | 1000 VA |
| Three Parallel Phase Current Maximum Work Time | 10 s |
| Frequency Range (Base Wave) | 20 Hz to 1000 Hz |
| Harmonic Frequency Number | 1 to 20 time |
| Current Output | 0 to ±10 A/each phase, 0 to ±30 A/every three parallel |
| Maximum Output of Load Voltage | 20 V |
| Output Accuracy | 0.5 magnitude |
| Phase Voltage Output (RMS) | 0 to 120 V |
| Line Voltage Output (RMS) | 0 to 240 V |
| Phase Voltage/Line Voltage Power Output | 80 VA/100 VA |
| Frequency Range (Base Wave) | 20 Hz to 1000 Hz |
| Harmonic Frequency Number | 1 to 20 times |
| Phase Voltage Output Amplitude | 0 V to+160 V |
| Line Voltage Output Amplitude | 0 V to +320 V |
| Phase Voltage/Line Voltage Power Output | 70 VA/140 VA |
| Switch Parameters Input (7ways) | Empty contact: 1 to 20 mA, 24 v Power contact access: “0”: 0 to +6 V; “1”: +11 V to +250 V |
| Switch Parameters Output (2 Couples) | DC: 220 V/0.2 A AC: 220 V/0.5 A |
| Time Measurement | Measuring range: 0.1 ms to 9999 s Measuring accuracy: 0.1 ms |
| Supply Power | AC 220 V ± 10%,50/60 Hz |
| Environmental Temperature | 14 ℉ to 122 ℉ (-10 ℃ to + 50 ℃) |
| Appearance and Size | 15.74 in x 11.81 in x 7.08 in (40 cm x 30 cm x 18 cm) |
| Weight of a Single Machine | 48.50 lb. (22 kg) |
