Professional Network Ethernet Network Tester Analyzer – Amuse Tech Solutions

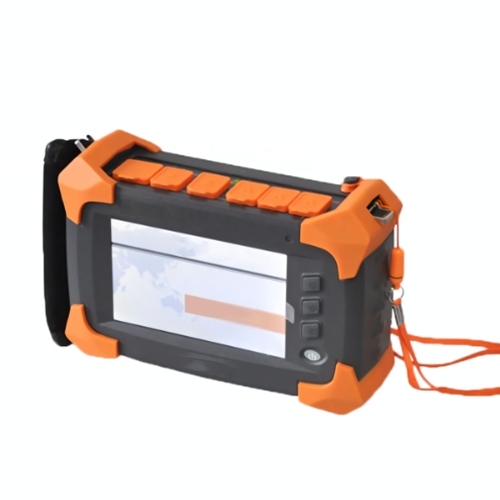

Amuse Tech Solutions professional network ethernet network tester analyzer- is a handheld 10M, 100M, or 1000M gigabit Ethernet tester, used for the Ethernet installation, operation and maintenance services. It is designed as a small and portable device which provides packet capture, network monitoring, network performance testing, data generation, test leads and error test functions in an organic whole unit. It is widely used in network layer 1, 2, or 3 BER test and RFC 2544 test. It helps maintenance people to quickly locate fault and analysis network
Description
Features
- Electrical port and optical ports
- Smart and durable, field application ready
- LCD color touch screen, smart navigation menu
- Results can be shown graphically and numerically
- RFC2544 auto test, quickly find the fault
- Full Y.1564 test
- LED indicator light, on-screen display and ICON
- Large capacity memory to save settings and test results
- Embedded software to easy upgrade
Technical Specifications
| Type | Testers and tools |
| Use | Ethernet Network |
| Network | Wired LAN |

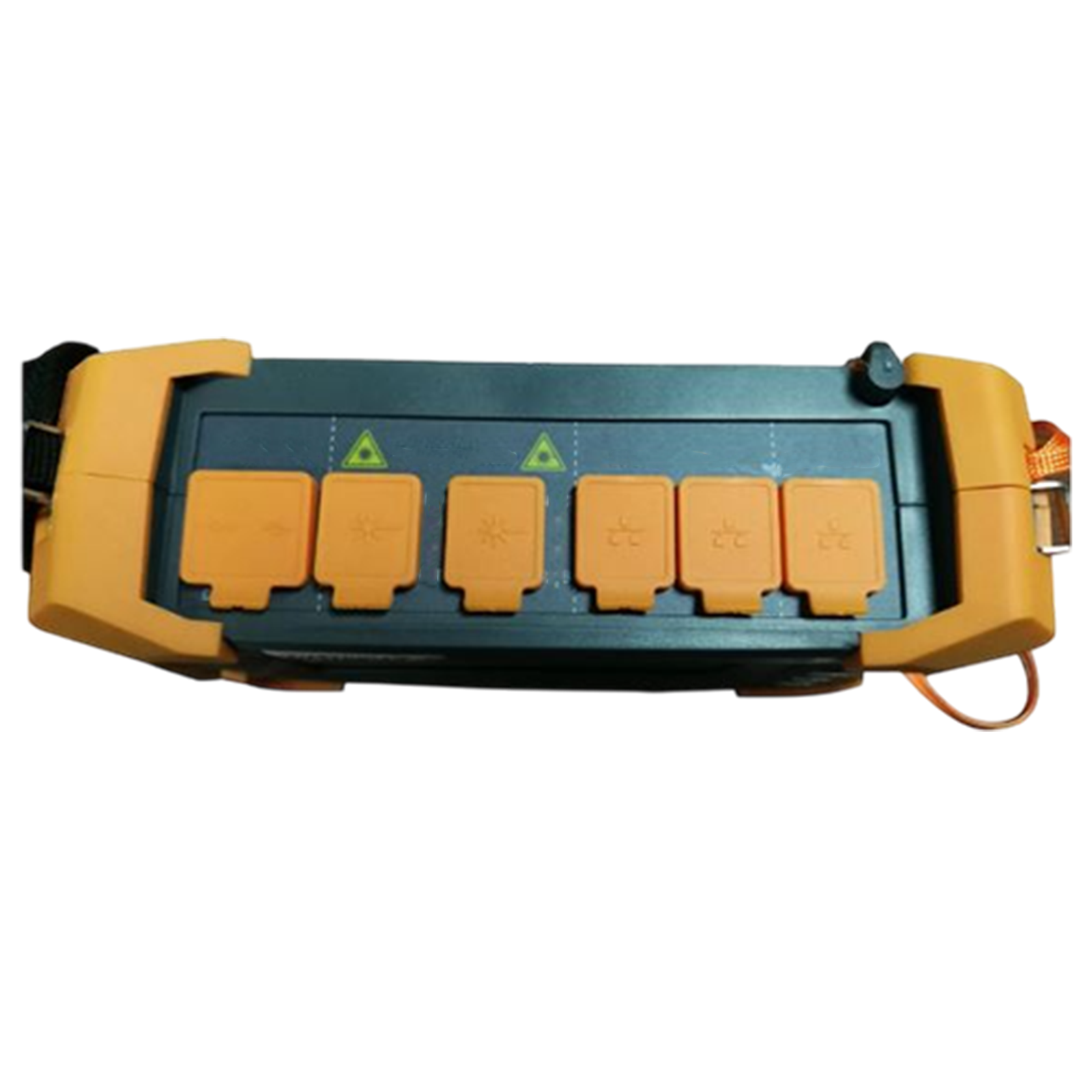

| Testing port | Dual-RJ45 port: 10, 100, or 1000 BASE-T Dual-SFP port: 1000BASE-SX, LX, or ZX |
| Standard | IEEE 802.3, RFC1242, RFC2544, Y.1564 |
| Connector | RJ-45 or USB |
| LED indicator | POWER, PORT1 LINK/ACT, PORT2 LINK/ACT, ALARM |
| Display | 800×480 color LCD touch screen |
| Battery | Lithium battery or AC adapter |
| Power Supply | 4 hours continuous operation |
| Operating temperature | 32 ⁰F to 122 ⁰F (0 ℃ to 50 ℃) |
| Relative humidity | 0 % to 95 % (non-condensing) |
| Dimension | 9.17 cm x 4.33 in x 2.52 in (23.3 cm × 11 cm × 6.4 cm) |
| Weight | 28.22 oz (800 g) |
